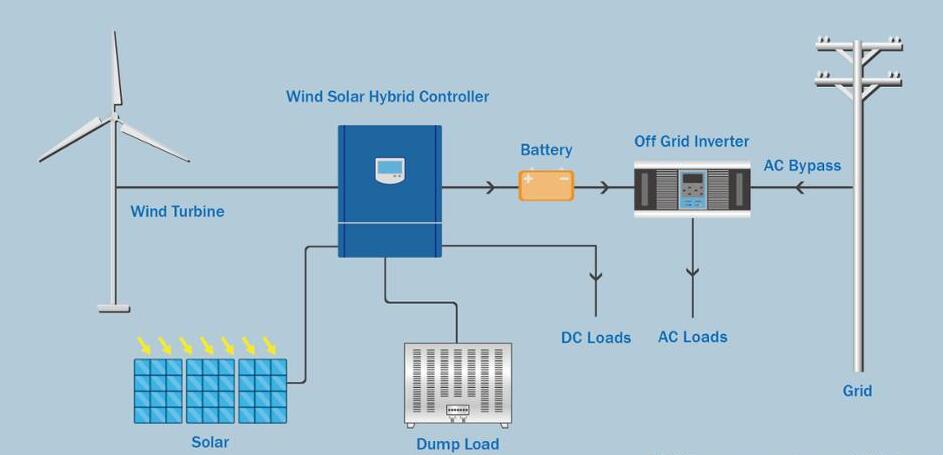

Type

500W-24Vdc

500W-48Vdc

500W-12Vdc

Wind turbine

500W

500W

500W

Solar panel

200Wp

200Wp

200Wp

Battery

24Vdc

48Vdc

12Vdc

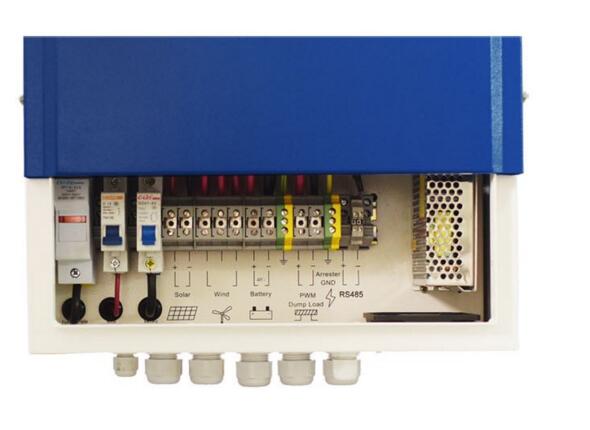

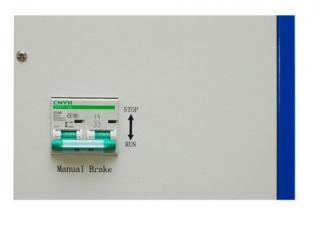

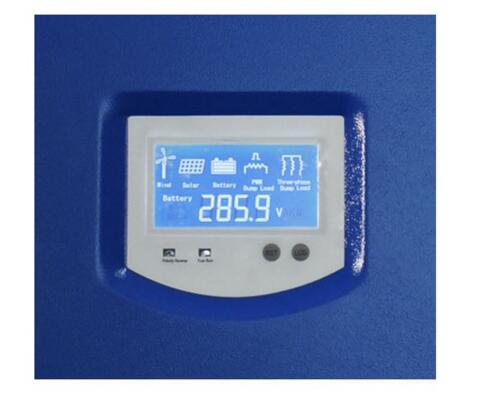

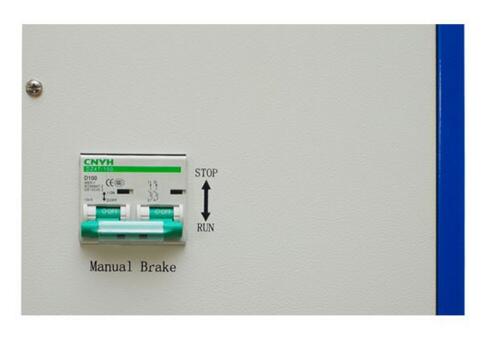

Function

Charge, control

Operating environment

Temperature -10-40°C,humidity≤80%

PWM constant pressure voltage

>28Vdc

>56Vdc

>14Vdc

3-phase load voltage of the wind turbine

29±1Vdc

58±1Vdc

15±1Vdc

wind turbine Recovery charging voltage

27±1Vdc

54±1Vdc

13.5±1Vdc

Solar stop charge voltage

29±1Vdc

58±1Vdc

15±1Vdc

Solar pane Recovery charging voltage

<28Vdc

<56Vdc

<14Vdc

Low-voltage of the battery

20±1Vdc

40±1Vdc

10±1Vdc

Self-provided connecting wire of the battery

>20mm²

>10mm²

>10mm²

PWM fuse

100A

40A

50A

Solar fuse

16A

10A

25A

Charging fuse

125A

63A

80A

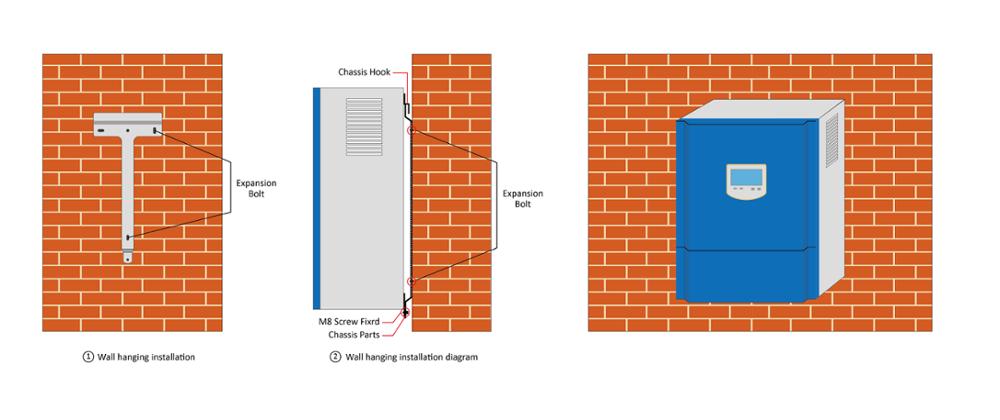

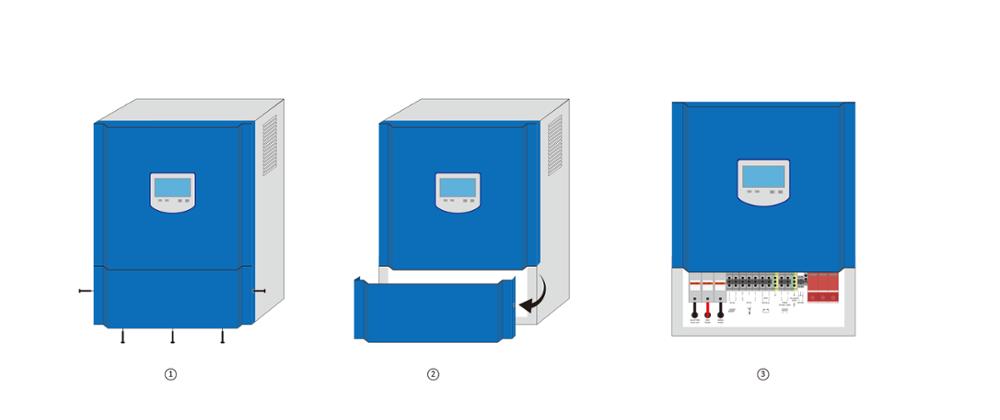

Size of the controller (mm)

480*360*23

480*360*230

480*360*230

Weight of the controller

12Kg

10Kg

12 Kg

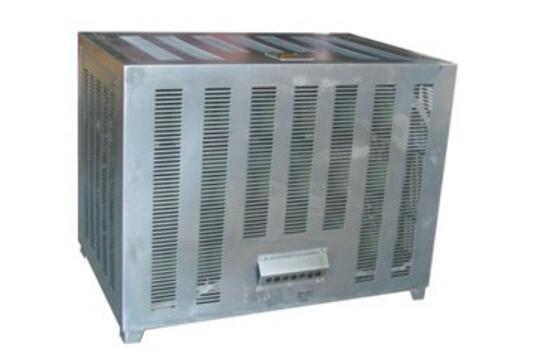

Size of the load (mm)

395*300*125

395*300*125

395*300*125

Weight of the load

5.5Kg

5.5 Kg

5.5Kg
