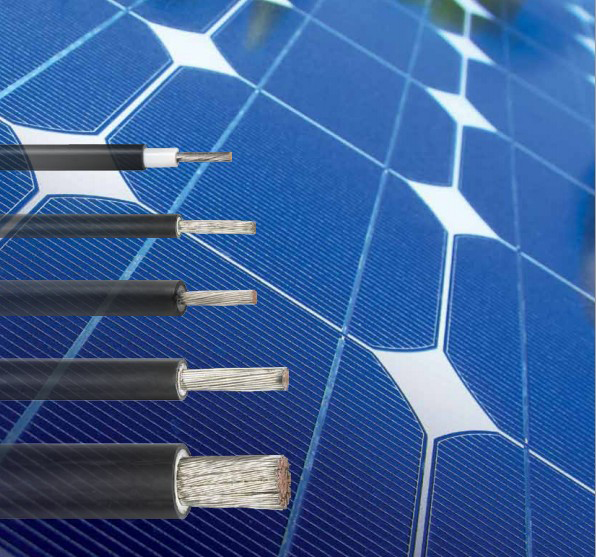

Solar single core cable

solar PV cable for solar system
Details

＞ Solar cables to enable safe and reliable connection of solar panels and PV systems.





＞ Data Sheet as bellow




TUV Size (mm²)

     UL （AWG）  Conductor Constrction  (n/mm) Conductor Stranded OD (mm) Cable OD (mm) TUV Current Capacity At 60℃
 1.5      16           30/0.25        1.58      5.60      30A
 2.5      14           49/0.25        2.02      6.05      41A
 4.0      12           56/0.30        2.60      6.60      55A
 6.0      10            84/0.30        3.42      7.45      70A
 10.0       8            84/0.40        4.56      10.10      98A
 16.0       6            128/0.40        5.60      11.10      132A


Kindly E-mail us for price ande details ? To:   sales@engineer-solar.com
