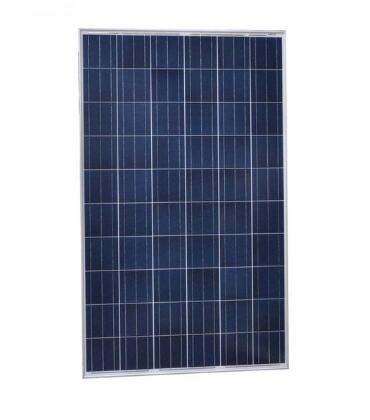

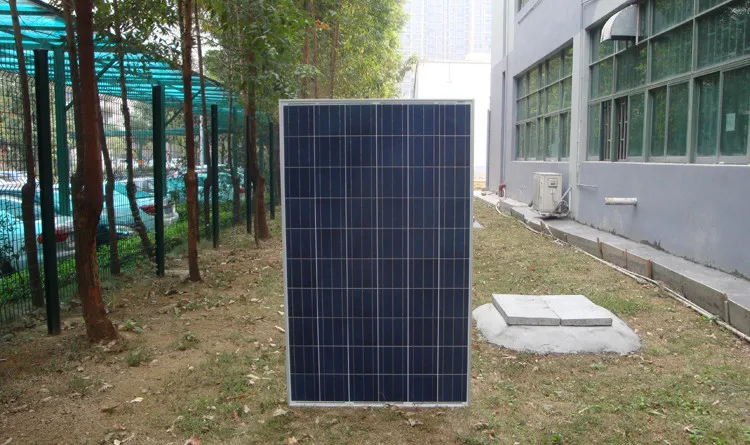

solar panel 250w 24v polycrystalline

    Details

    Solar Panel  Characteristics

    Model No.

    SFP250 W

    Maximum Power at STC (Pmax)

    250 W

    Optimum Operating Voltage (Vmp)

    30V

    Open - Circuit Voltage (Voc)

    43.2 V

    Optimum Operating Current (Imp)

    8.33A

    Short - Circuit Current (Isc)

    9.2A

    Cell Efficiency

    about 17.2 %

    Operating Module Temperature

    -40 °C to +85 °C

    Maximum System Voltage

    1000 V DC (IEC) / 600 V DC (UL)

    Diodes

    3 by pass

    Power Tolerance

    -3/+3 %

    STC: irradiance 1000 W/m2, module temperature 25 °C, AM=1.5; Power measurement tolerance: ± 3%

    warranty is offered that guarantees electrical production for 10 years at 90% of rated power output and 25 years at 80%.

    We are an experienced manufacturer of solar energy products since 2008  and own 6 production lines.You are welcome to wholesle .We offer you best price and quality.

    • : 3.2mm tempered glass, excellent mechanical loading performance, resists 5400PA snow loads and 2400PA wind load.

    EVA Film: main component is 30%-33% of EVA, which assures a high transmission, strong adhesion and long term performance.

    • : excellent performance in low light environment and high conversion efficiency guaranteed.

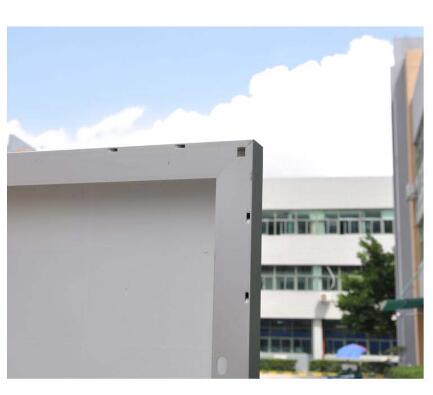

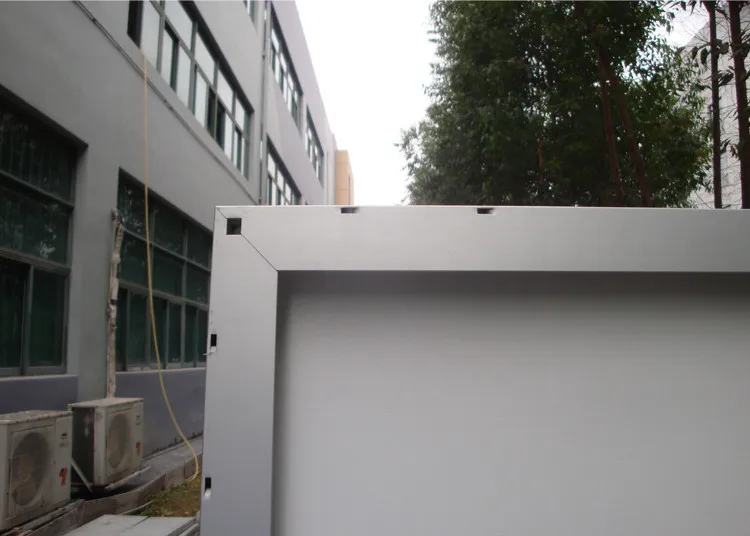

    • : strong corrosion resistant aluminum frames.

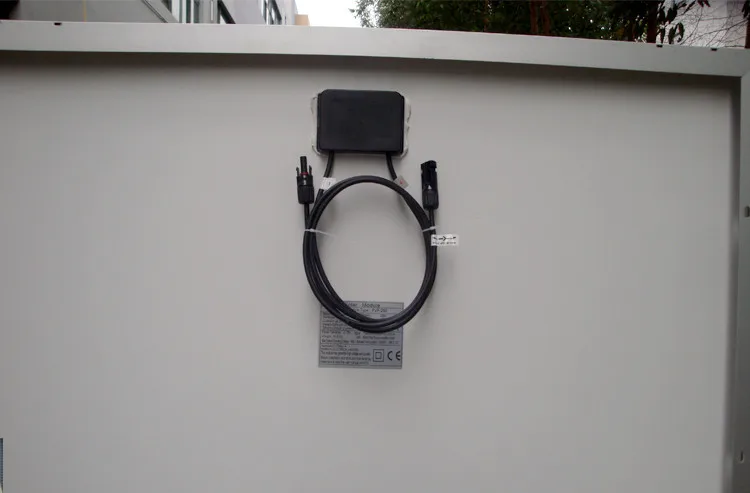

    Back sheet: both sides of back sheet are coated with fluoric resin to prevent aging. This unique structure allows our back sheet to provide perfect adhesion with EVA and junction box.





    123456


    Kindly E-mail us for price and details ? To:   sales@engineer-solar.com
