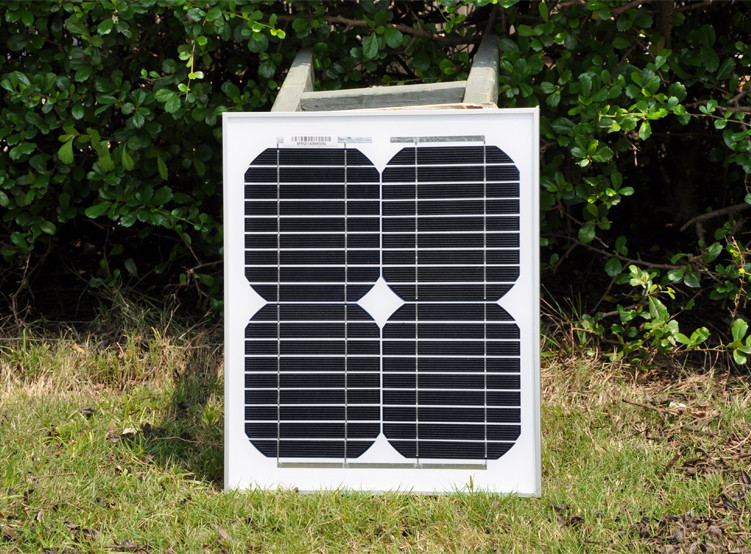

Solar Panel 10W 12V waterproof monocrystalline solar cell camping

    Details

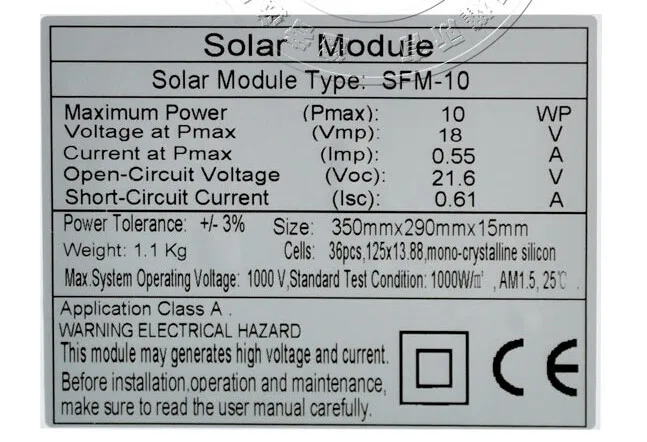

    Solar Panel  Characteristics

    Model No.

    SFM10 W

    Maximum Power at STC (Pmax)

    10 W

    Optimum Operating Voltage (Vmp)

    18 V

    Open - Circuit Voltage (Voc)

    21.6 V

    Optimum Operating Current (Imp)

    0.56A

    Short - Circuit Current (Isc)

    0,61A

    Cell Efficiency

    about 16.5%

    Operating Module Temperature

    -40 °C to +85 °C

    Maximum System Voltage

    1000 V DC (IEC) / 600 V DC (UL)

    Diodes

    0 by pass

    Power Tolerance

    -3/+3 %



    Certificate:SGS,CE.RoHs,UL,ISO

    Feature

    1.Waterproof : EVA ,TPE Layer and Tempered Glass

    2.Solid :Can withstand 2400 pascal wind load and 5400 pascal snow load.

    3.High Efficiency:About 17-19 % convertion

    4.Long Guarantees:90% performance in 10 years and 80% in 25 years.

    5.Cell Effiency :17%



    Solar Panel Maintenance

    Regular cleaning from a professional window washing company or by individuals can be performed on a regular schedule.

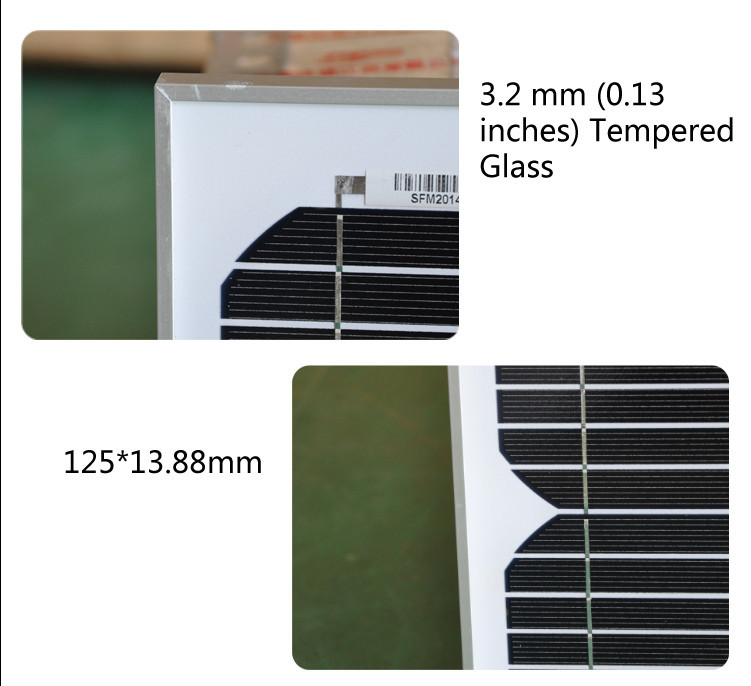

    1. Glass: 3.2mm tempered glass, excellent mechanical loading performance, resists 5400PA snow loads and 2400PA wind load.
    2. & 4. EVA Film: main component is 30%-33% of EVA, which assures a high transmission, strong adhesion and long term performance.
    3. Cell: excellent performance in low light environment and high conversion efficiency guaranteed.

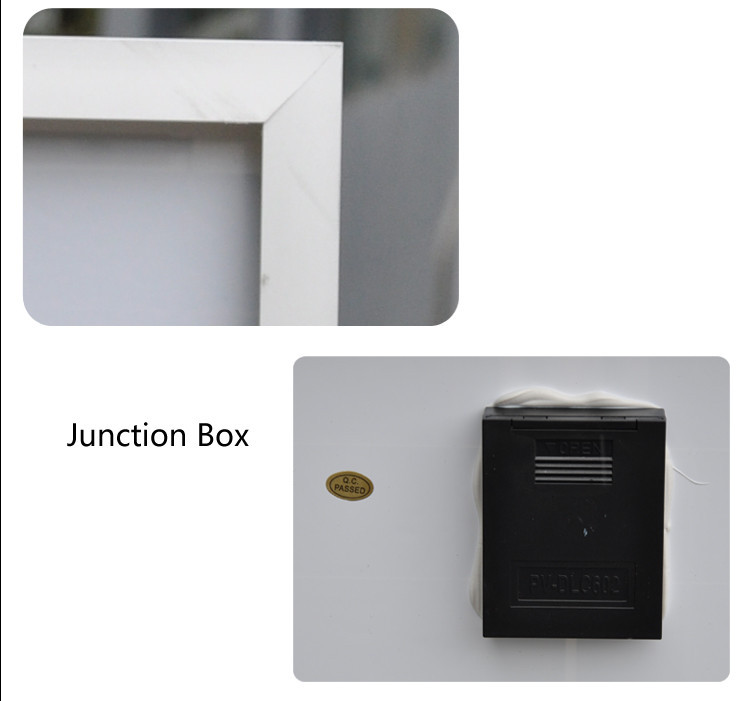

    5. Frame: strong corrosion resistant aluminum frames.

    6. Backsheet: both sides of backsheet are coated with fluoro resin to prevent aging. This unique structure allows our backsheet to provide perfect adhesion with EVA and junction box.

    10W M

    1234567

    8

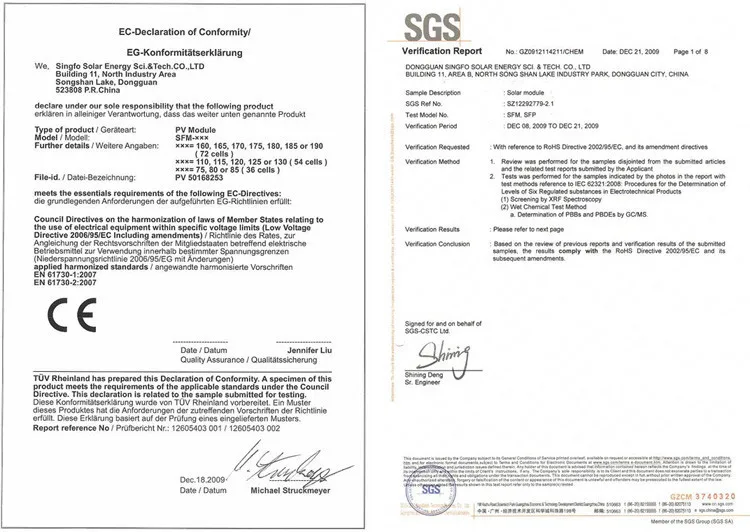

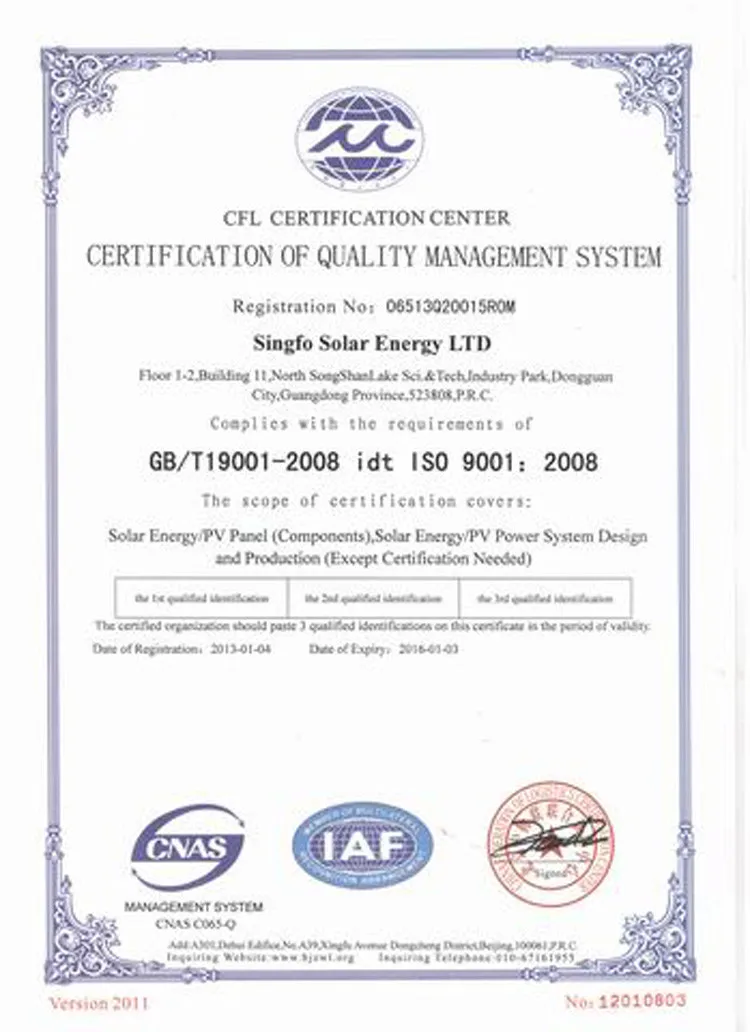

    CE1 aliexpress versionISO(03-25-08-41-20)aliexpress versionTUV aliexpress version


    Kindly E-mail us for price and details ? To:   sales@engineer-solar.com
