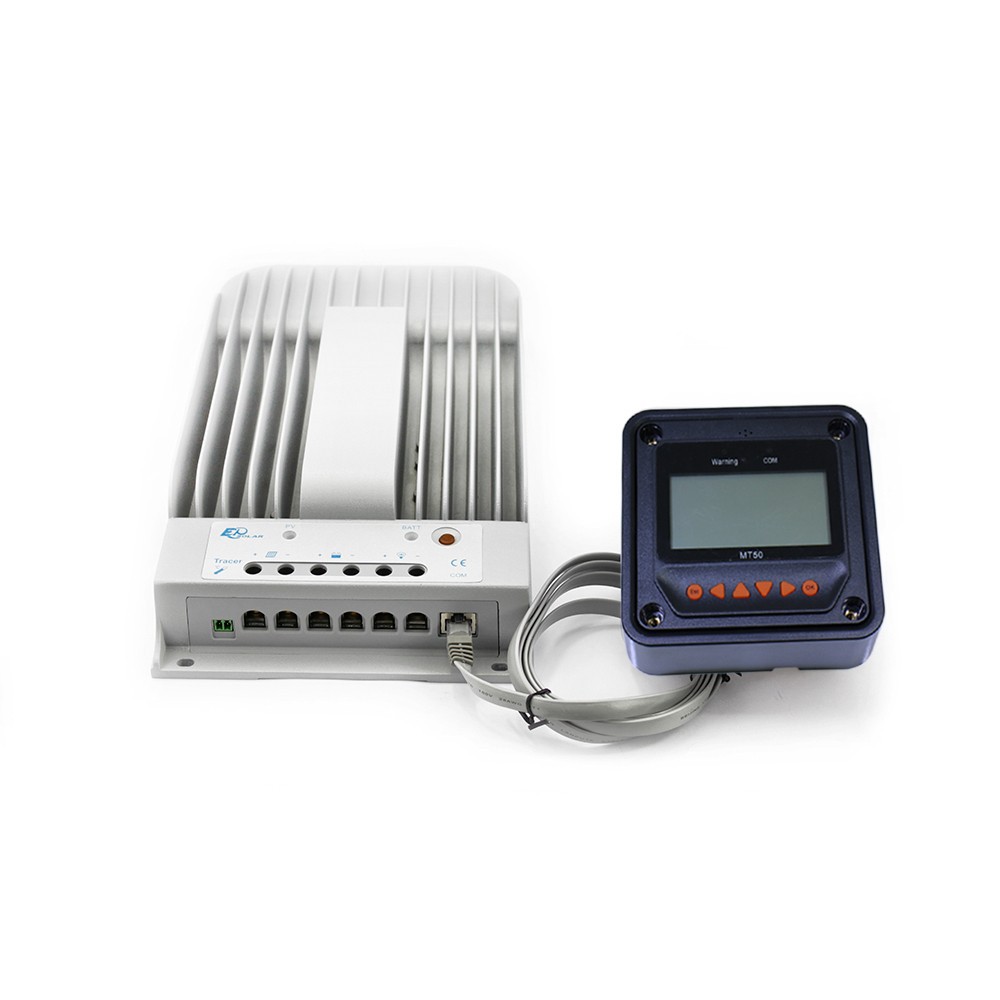

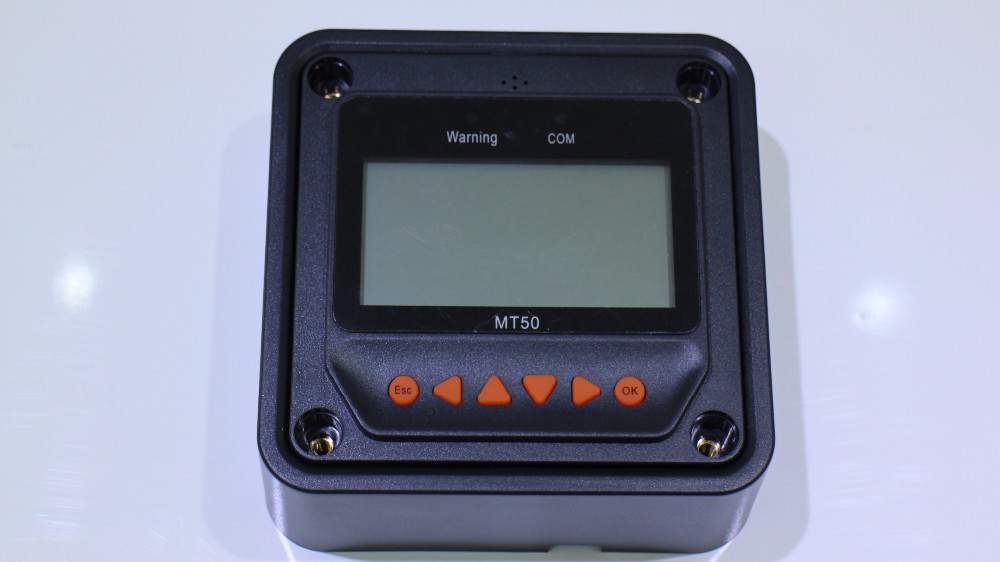

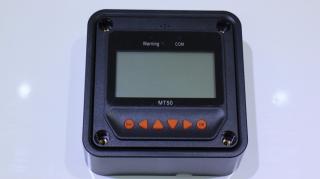

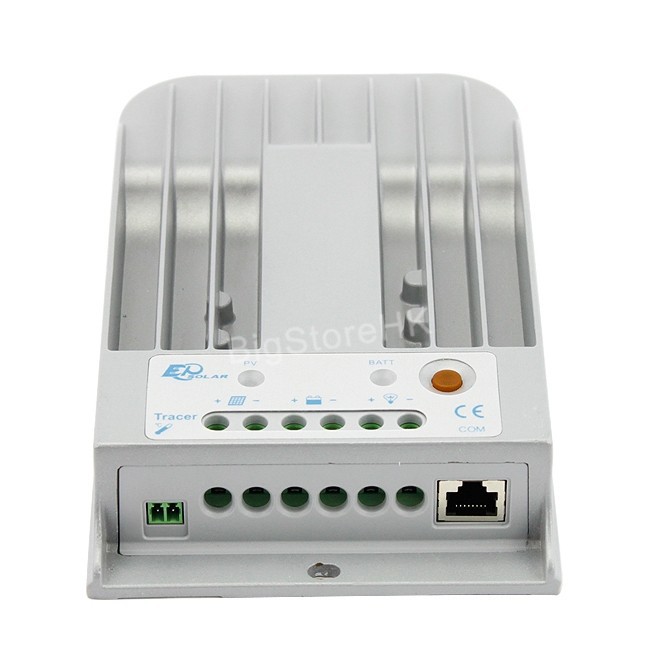

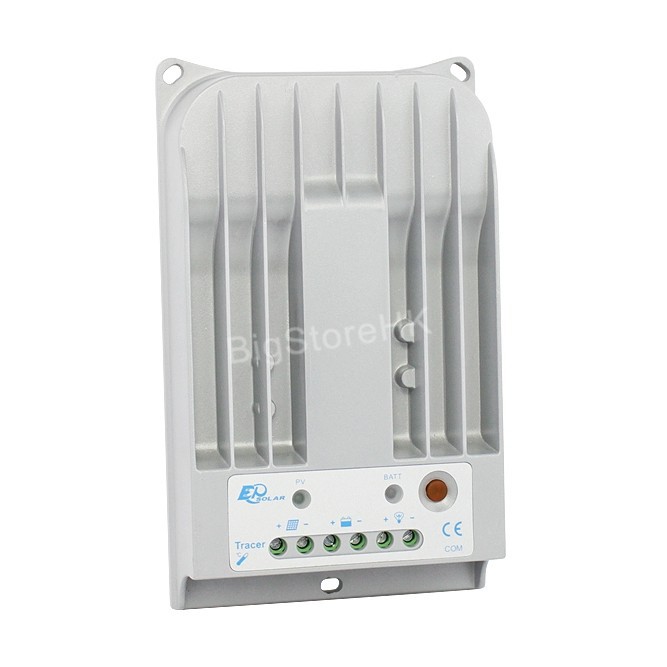

MPPT Solar Charge Controller with Intelligent Lighting and Timer Control TRACER4215BN Remote Meter MT50 Tracer 4215BN

    Details


    Features:
    ·Innovative MPPT technology
    ·Peak conversion efficiency of 98%
    ·High tracking efficiency up to 99%
    ·Several seconds tracking speed
    ·Die-cast aluminum design and nature cooling
    ·Temperature compensation
    ·Diversified load control to meet different requirements
    ·Four battery type options: Sealed, Gel, Flooded, and USER
    ·Intelligent lighting and timer control for solar lighting system
    ·Energy statistics function
    ·RS485 ports with MODBUS communication protocol
    ·Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
    ·Field upgradable firmware


    Electronic Protections:

    ·PV short circuit protection
    ·PV overvoltage alarm protection
    ·PV current limiting protection
    ·PV reverse polarity protection
    ·Battery overcharge protection
    ·Battery over discharge protection
    ·Battery reverse polarity protection
    ·Load overload protection
    ·Load short circuit protection
    ·Overheating protection




    Model

    Tracer1215BN

    Tracer2215BN

    Tracer3215BN

    Tracer4215BN

    Nominal system voltage

    12/24V auto work

    Rated battery current

    10A

    20A

    30A

    40A

    Rated load current

    10A

    20A

    20A

    20A

    Max. PV open circuit voltage

    150V

    Max. battery voltage

    32V

    Max. PV input power

    130W (12V)

    260W (12V)

    390W (12V)

    520W (12V)

    260W (24V)

    520W (24V)

    780W (24V)

    1040W (24V)

    Equalize charging voltage

    Sealed: 14.6V, Flooded: 14.8V,USER: 9~17V

    Boost charging voltage

    Gel: 14.2V,Sealed: 14.4V,Flooded: 14.6VUSER: 9~17V

    Float charging voltage

    Gel /Sealed /Flooded: 13.8V, USER: 9~17V

    Low voltage reconnect voltage

    Gel /Sealed /Flooded: 12.6V, USER: 9~17V

    Low voltage disconnect voltage

    Gel /Sealed /Flooded: 11.1V, USER: 9~17V

    Self-consumption

    ≤50mA(12V) ≤27mA(24V)

    Grounding

    Common negative

    Temp. compensation

    -3mV/°C



    /2V

    Communication Port

    RS485 / RJ45 interface

    Working temperature

    -35°C



    -+55°C



    Storage temperature

    -35°C



    +80°C



    Humidity

    ≤95% N.C.

    Enclosure

    IP30

    Overall dimension

    196x118x36mm

    217x143x56mm

    281x160x60mm

    303x183x64mm

    Terminal

    4mm2

    10mm2

    16mm2

    25mm2

    Net weight

    0.9kg

    1.5kg

    2.3kg

    2.9kg



    \
