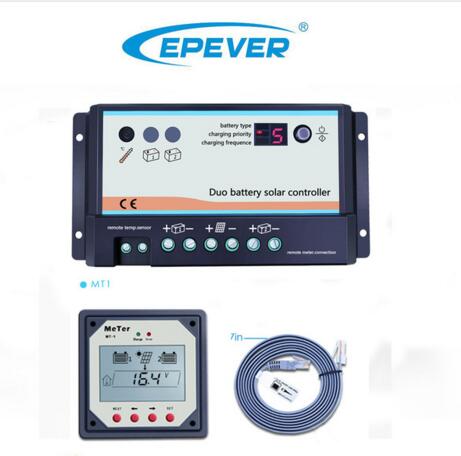

EPever DB Series daul battery charge controller with Remote LCD Meter

    Details


    Duo-battery Solar Charge Controller with Remote Meter.

    For RVs, Caravans and Boats.

    - 10Amp, 20Amp 12/24V auto-work.
    - NOTES: For use with solar panels only.

    Duo-Battery Controller Features:3. Protection:

    - Over charging

    - Short-circuit
    - Reverse polarity
    - Revert current to PV

    - Microcontroller Control for Fully Intelligent System

    - Utilizes Serial Mode PWM Control for Maximum Efficiency
    - Suitable for both 12V and 24V Systems
    - Temperature Compensation
    - Digital LED Indicator Light
    - Wide Temperature Working Range of -35c to 55c
    - Automatically Switches between 2 Batteries
    - Full Installation Instructions Included



    Remote meter Features:

    - Remote digital display for the 10Amp/20Amp Duo- Battery Solar Charge Controller.

    - Ideal for monitoring and display current solar system status.
    - Displays both solar voltage and battery voltage as well as charging current and load current.
    - Shows Amp-Hour and Watt-Hour charge accumulation as well as percentage the batteries are charged.

    - Easy to use and program and is ideal for a quick system check.

    Technical Information:

    Model No: EPIP20-dB

    EPIP20-dB: 12 VOLT or 12/24 VOLT auto work, 10 AMPS
    EPIP20-dB: 12 VOLT or 12/24 VOLT auto work, 20 AMPS
    Setpoint Sealed battery Flooded battery Gel battery
    Regulation voltage 14.2V 14.4V 14.6V
    Boost voltage 14.4V 14.6V 14.8V
    Float voltage 13.7V 13.7V 13.7V
    Maximum solar voltage 30V(or 55V)
    Battery voltage range 1-15V
    Boost time 30 minutes
    Self-consumption 4mA at night, 10mA at charging
    Meterbus connection 8-pin RJ-45
    Temp. Compensation -30mV/12V
    Terminals 4mm2
    Temperature -35 C to +55 C

    Note: All the data is for 12V, for 24V, please use 2x.

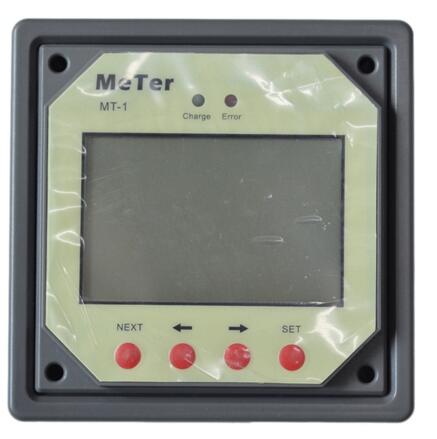

    MT-1 Remote Meter

    MT-1 is an optional accessory for EPIPDB-COM series solar charge controller. The LCD displays the system status and parameters clearly.

    Remote digital display for the 10Amp/20Amp Duo- Battery Solar Charge Controller. Ideal for monitoring and display current solar system status. Displays both solar voltage and battery voltage as well as charging current and load current. Shows Amp-Hour and Watt-Hour charge accumulation as well as percentage the batteries are charged. Easy to use and program and is ideal for a quick system check.

    Features:

    ·Display the system status and parameters with digital and graphic icon.

    ·Battery type selectable
    ·Battery Ah setting function
    ·Temperature compensation coefficient adjustable
    ·Four keys to solve the setting easily
    ·Control the load by manual
    Microcontroller Control for Fully Intelligent System
    Utilizes Serial Mode PWM Control for Maximum Efficiency
    Suitable for both 12V and 24V Systems
    Temperature Compensation
    Digital LED Indicator Light
    Wide Temperature Working Range of -35c to 50c
    Automatically Switches between 2 Batteries
    Full Installation Instructions Included

    Rated voltage

    12V, min voltage (suggest): 8.0V

    Strong backlight on

    <23mA

    Low backlight on

    <20mA

    Backlight and LED indicator off

    <17mA

    Operation temperature

    -40C ~ +60C

    LCD operation temperature

    -10C ~ +40C

    Humidity

    0-100%

    Communication cable

    RJ45(8PIN), 10 meter
