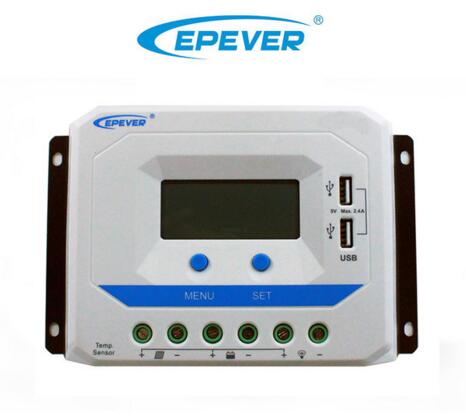

EPever VS Series 10A/20A/30A/40A/50A/60A 12V 24V

    Details

    Item VS1024AU VS2024AU VS3024AU VS3048AU VS4542AU VS4548AU VS6024AU VS6048AU
    Nominal system voltage 12/24VDC Auto 12/24/36/48VDC Auto 12/24/36/48VDC Auto 12/24/36/48VDC Auto 12/24/36/48VDC Auto 12/24/36/48VDC Auto
    Battery input voltage range 9V~32V 9V~64V 9V~32V 9V~64V 9V~32V 9V~64V
    Rated charge/discharge current 10A@55°C 20A@55°C 30A@55°C 45A@55 °C 60A@55°C
    Max. PV open circuit voltage 50V 96V 50V 96V 50V 96V
    Battery type Sealed(Default) / Gel / Flooded
    Equalize Charging Voltage Sealed:14.6V/ Gel: No/ Flooded:14.8V
    Boost Charging Voltage Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
    Float Charging Voltage Sealed/Gel/Flooded:13.8V
    Low Voltage Reconnect
    Voltage
    Sealed/Gel/Flooded:12.6V
    Low Voltage Disconnect
    Voltage
    Sealed/Gel/Flooded:11.1V
    Self-consumption ≤9.2mA/12V;≤11.7mA/24V; ≤14.5mA/36V;≤17mA/48V
    Temperature compensation
    coefficient
    -3mV/°C/2V(25°C)
    Charge circuit voltage drop ≤0.29V
    Discharge circuit voltage drop ≤0.16V
    LCD temperature range -20°C~+70°C
    Working environment
    temperature
    -25°C~+55°C(Product can work continuously at full load)
    Relative humidity ≤95%, N.C.
    Enclosure IP30
    Grounding Common Positive
    USB output 5VDC/2.4A(Total)
    Overall dimension 142x85x41.5mm 160x94.9x49.3mm 181x100.9x59.8mm 194x118.4x63.8mm 214x128.7x72.2mm
    Mounting dimension 130x60mm 148x70mm 172x80mm 185x90mm 205x100mm
    Mounting hole size Φ4.5mm Φ5mm Φ5mm Φ5mm
    Terminals 4mm 2 /12AWG 10mm 2 /8AWG 16mm 2 /6AWG 16mm 2 /6AWG 25mm 2 /4AWG
    Net weight 0.22kg 0.35kg 0.55kg 0.58kg 0.76kg 0.88kg 1.02kg 1.04kg
    Link Click Click Click Click Click Click Click Click
    Above the red parameters are in 12V system at 25 ℃, twice in 24Vsystem, triple in 36V system and quadruple in 48V system.
