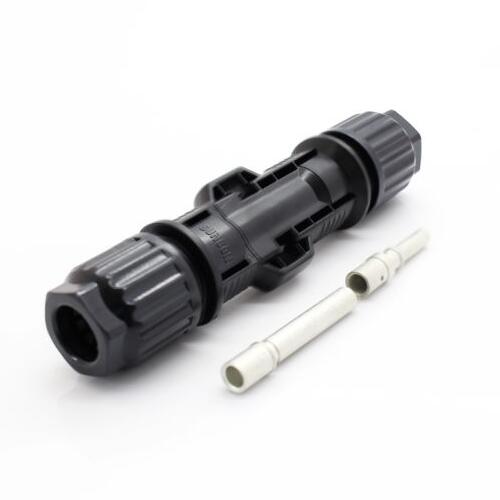

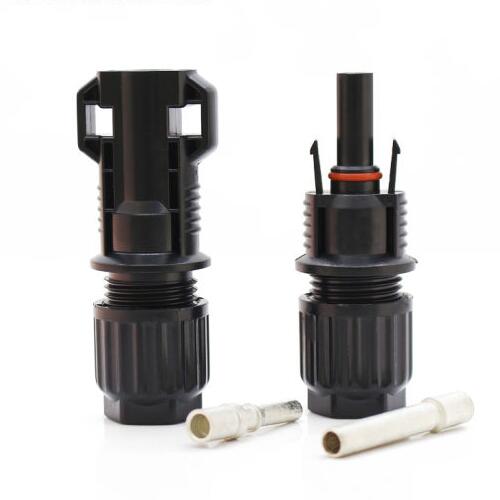

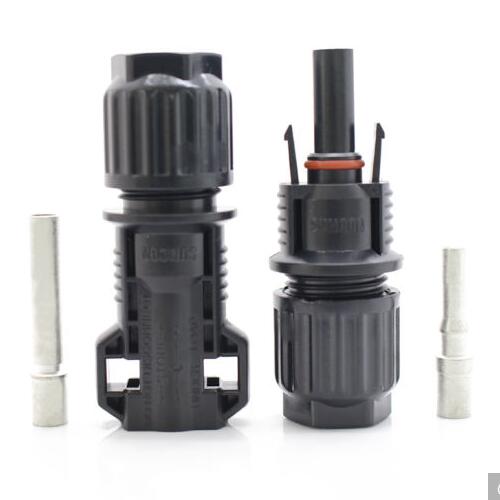

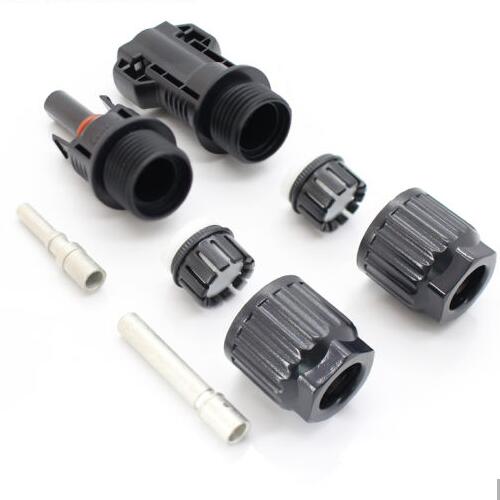

TUV 10mm Sqm UL 8AWG Stand Connector

    Details


    DATA SHEET:


    Insulation material:
    PPO
    Rated Voltage TUV 1000 DC/ UL 600V DC
    Test voltage 6KV(50Hz,1Min)
    Contact material copper, tin plated
    Contact resistance
    less than 0.5 m ohm

    Degree of protection
    IP68
    Pollution Degree 2
    Protection class Class II
    Flame calss UL94-V0
    Plug Force less than 50N
    Withdrawal force more than 50N
    Ambient temperature range -40  ~ +  90.
    Compatible cable cross sections  Solar cable  10 mm² (14 awg,12awg,10awg)
    Pin dimention 4.0mm
