Solar Pump System

Details

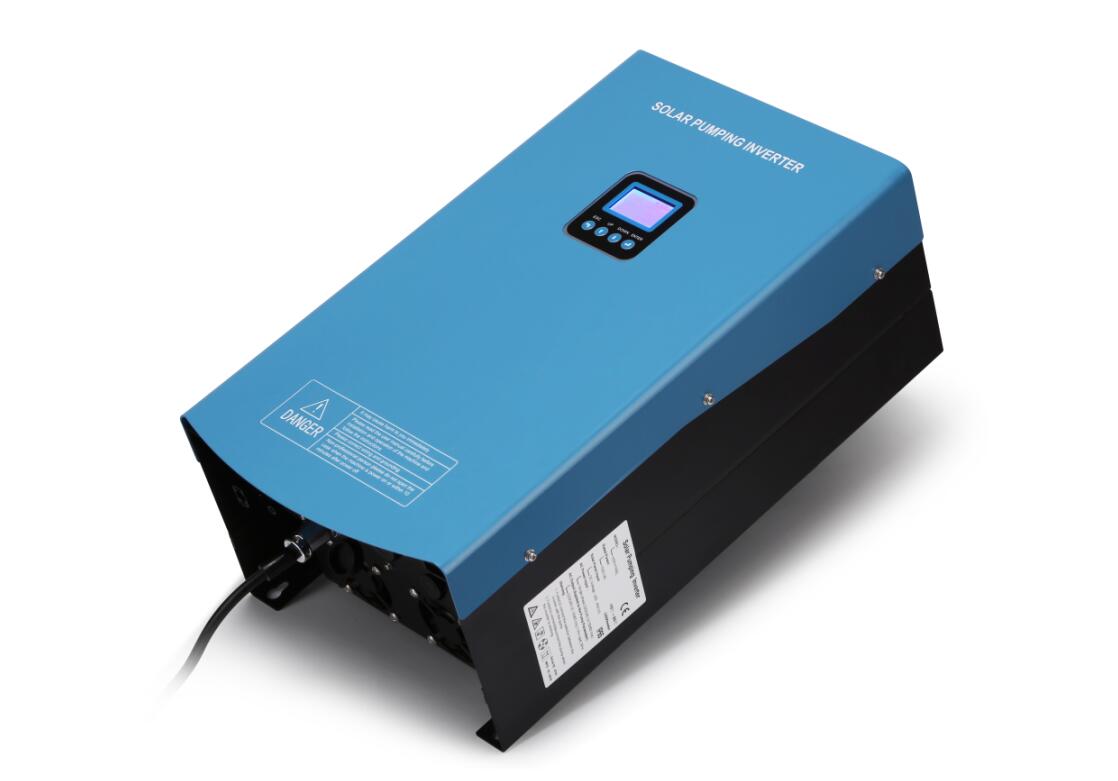

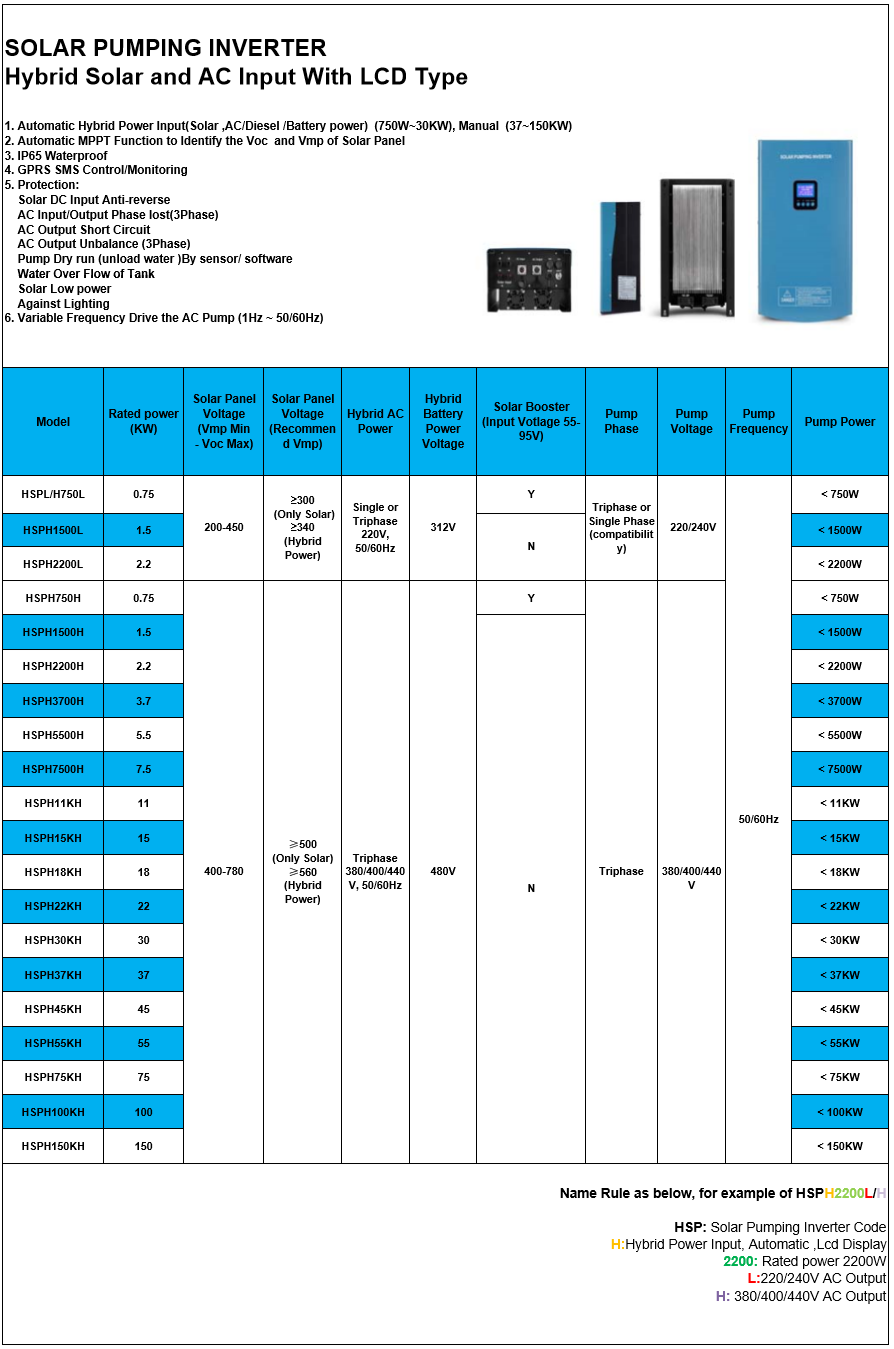

Solar Pumping Inverter – Hybrid Solar and AC Input With LCD Type

LCD Display Type:

Convert the DC power of solar array into AC power to the water pump. Soft start and Variable Frequency drive the pump.

Second Generation of MPPT Function: Automatic /don’t need set MPPT voltage by LCD/LED. Efficiency is Max to 30% higher than the inverter who need to set the MPPT voltage, more output water flow.

One Key for Startup/ Stop,support to adjust the output water flow also.

Without battery,storing water is more efficient than storing electricity,reduce the cost of construction ,operating and routine maintenance

128*64 px

Keyboard include : Esc, Up, Down, Enter

Support Program parameters:

Working time of AM:PM

Low Power of solar panel to stop working

Dry-run parameters of software detecting, reference value is self-learning.

Max output Freq 50/60Hz setting

Max output Voltage 380/440V setting

Dry-Run detecting Enable/Disable

Over flow of Tank detecting Enable/Disable

Gprs Communication Password

Password of enter setting menu

Factory Reset

Display the company name and module on screen for better advertisement

Error history for Max 50 records at latest

Warning/Error Message by English, Not Error Flag

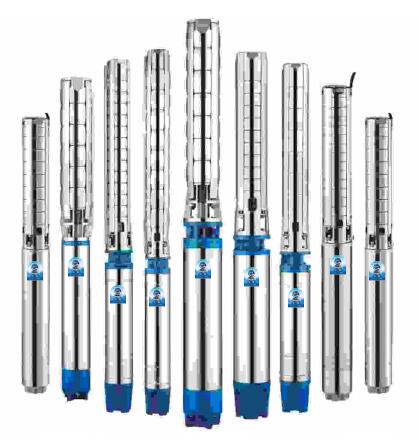

4 Inch Solar Water Pump (DC AC Dual Input)
MODEL	POWER	FLOW(T/H)	HEAD(Meter)	INPUT	SOLAR	VOLTAGE	SPEED	HEIGHT	OUTLET
MODEL	W	Rated/Max	Rated/Max	KW	KW	AC/DC	r/min	mm	mm
4SZW8-20-0.75	750	8/12	20/25	0.9	1.35	220V/300V	4200	500	38
4SZW8-26-1.1	1100	8/13	26/36	1.38	2.07	220V/300V	5000	500	38
4SZW2-70-1.1	1100	2/7	70/85	1.4	2.1	220V/300V	7200	530	38
4SZW3-50-1.1	1100	3/8	50/65	1.4	2.1	220V/300V	7200	500	38
4SZW4-40-1.1	1100	4/6.6	40/48	1.3	1.95	220V/300V	5700	530	38
4SZW10-18-1.1	1100	10/20	18/22	1.29	1.93	220V/300V	4000	510	38
4SZW2-100-1.5	1500	2/7	100/115	1.85	2.78	220V/300V	7200	540	38
4SZW5-50-1.5	1500	5/10	50/85	1.85	2.78	220V/300V	7200	495	38
4SZW6-45-1.5	1500	6/12	45/65	1.85	2.78	220V/300V	7200	500	38
4SZW10-30-1.5	1500	10/14	30/44	1.8	2.7	220V/300V	5500	500	38
4SZW13-22-1.5	1500	13/23	22/28	1.85	2.78	220V/300V	4500	510	50
4SZW10-37-1.8	1800	10/14	37/52	2.35	3.53	220V/300V	6000	500	38
4SZW10-45-2.2	2200	10/14	45/60	2.85	4.27	380V/530V	6500	500	38
4SZW3-130-2.2	2200	3/8	130/150	3.6	5.4	380V/530V	7200	560	38
4SZW2-180-2.2	2200	2/7	180/195	3.7	5.5	380V/530V	7200	600	38
4SZW8-60-2.2	2200	8/12	60/85	2.89	4.3	380V/530V	7200	520	38
4SZW16-25-2.2	2200	16/26	25/35	2.63	3.95	380V/530V	5000	500	50
4SZW10-58-3	3000	10/14	58/74	4	6	380V/530V	7200	510	38
4SZW3-175-3	3000	3/5	175/198	3.85	5.78	380V/530V	6500	630	38
4SZW5-100-3	3000	5/8	100/120	3.57	5.3	380V/530V	7200	540	38
4SZW10-50-3	3000	10/14	50/65	3.57	5.3	380V/530V	7200	520	38
4SZW18-30-3	3000	18/29	30/42	3.31	5	380V/530V	5500	520	50
4SZW6-120-4	4000	6/8	120/142	5.1	7.65	380V/530V	6800	580	38
4SZW10-80-4	4000	10/14	80/180	5.2	7.8	380V/530V	7000	530	38
4SZW20-40-4	4000	20/28	40/66	5.2	7.8	380V/530V	7200	520	50
4SZW20-45-4	4000	20/32	45/57	5.31	7.96	380V/530V	6500	530	50
4SZW5-200-5.5	5500	5/8	200/267	7.2	10.8	380V/530V	7200	640	38
4SZW6-150-5.5	5500	6/8	150/178	6.5	9.75	380V/530V	7200	610	38
4SZW10-120-5.5	5500	10/14	120/148	7.3	11	380V/530V	7200	640	38
4SZW20-55-5.5	5500	20/30	55/75	6.9	10.35	380V/530V	7200	610	50
4SZW10-150-7.5	7500	10/18	150/210	8.8	13.2	380V/530V	7000	650	38
4SZW20-80-7.5	7500	20/28	80/90	9.1	13.6	380V/530V	6800	650	50
