Watt Meter with Anderson Plug

    Details

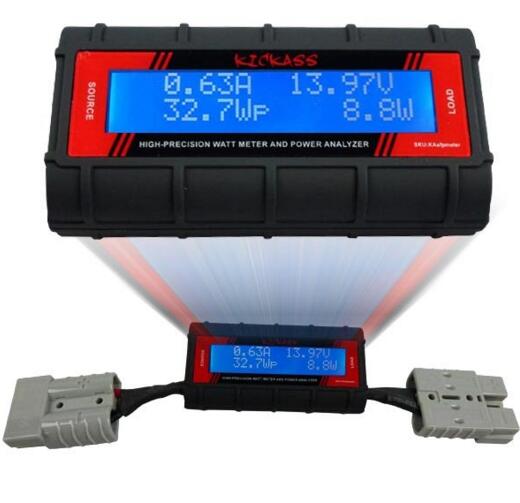

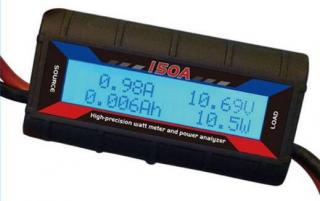

    Watt & Power Meter for use with Solar Panels


    This simple yet extremely handy device gives a digital display of exactly how much charge your panels are actually producing. It has been difficult to measure this without special equipment or expert knowledge - until now!
    The device is easily installed and provides you with all the key ratings of your solar panels in realtime.
    This is a perfect companion to our range of KickAss Portable Solar Panels but can be used with any type of solar panel aswell.


    Installation is easy - the watt meter has two anderson plugs, and is installed in-line between your solar regulator and batteries/load. Simply connect the solar panel regulator's output to the "source" side of the watt meter, and connect the battery/load cabling to the "load" side. Once there is power flowing through, the device will initialise and show you a full range of ratings including:



    ·         Current (Amps/A) at the present moment

    ·         Voltage (Volts/V) at the present moment

    ·         Power (Watts/W) at the present moment

    ·         Total Amps (Amp hours/Ah) since device initialised

    ·         Total Power (Watt hours/Wh) since device initialised

    ·         Highest Voltage Maximum (Vm) since device initialised

    ·         Highest Power Peak (Watt Peak/Wp) since device initialised

    ·         Highest Current Peak (Amp Peak/Ap) since device initialised


    The Solar Watt Meter only requires a a tiny 7mA draw to operate, so there will be no significant reduction in your power production during usage.



    Operating Voltage

    0-60V DC

    Current

    0-150A Intermittent
    60A Continuous

    Temperature Range

    0-50°C ambient air temp.

    Measurement Update Period

    400mS

    Data Queue Sequence Time

    2sec

    In Circuit Resistance

    0.001 Ohms

    Operation Current

    7mA

    Auxiliary Power Voltage

    4-60V DC

    Dimensions

    84 x 50 x 20mm (LxWxD)

    Weight

    132g

    Display

    16 character x 2 row STN LCD




    Measurement Parameters:




    Parameter

    Range

    Resolution

    Voltage

    0-60V DC

    0.01V

    Current

    0-150A Peak

    0.01A

    Power

    0-6554W

    0.1W

    Charge

    0-65Ah

    0.001Ah

    Energy

    0-6554Wh

    0.1Wh
