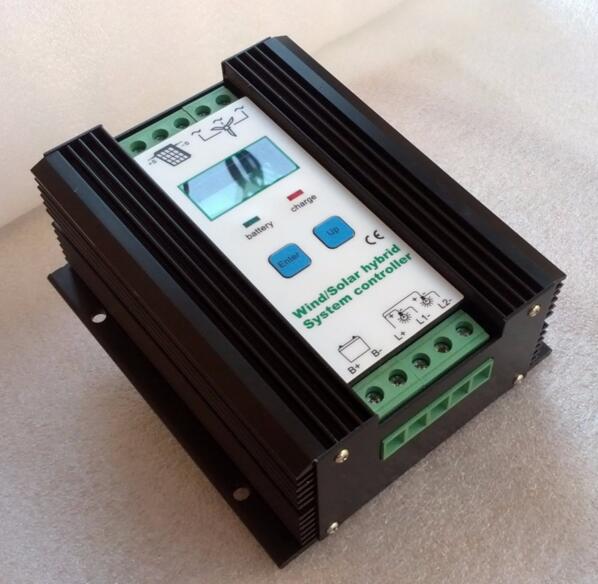

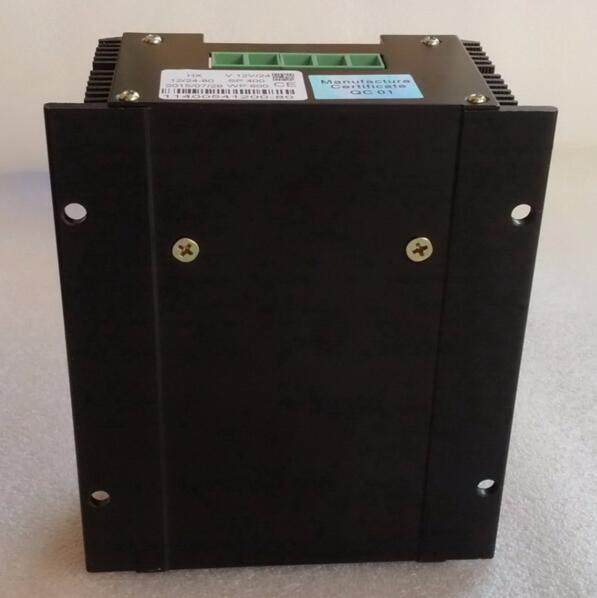

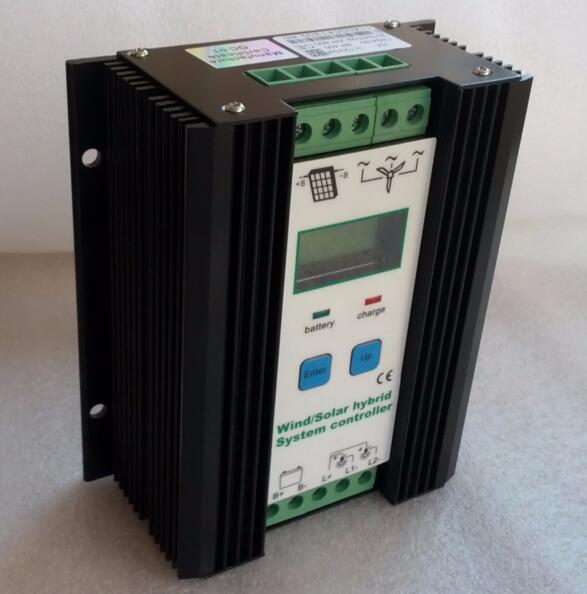

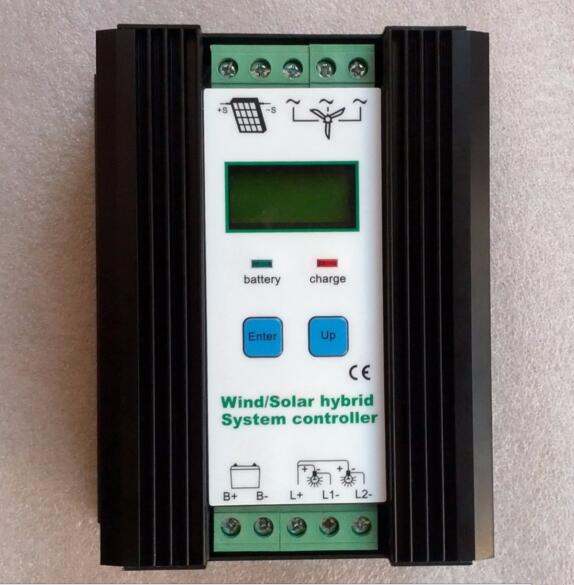

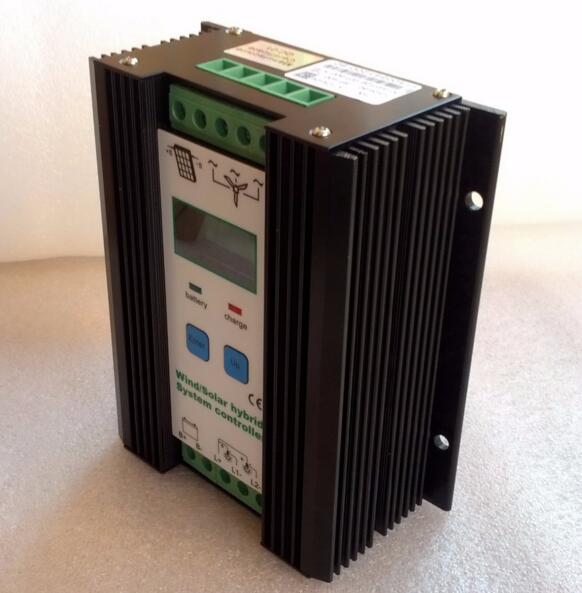

Solar Wind Hybrid Controller 200W - 1000W

    Details




    Data Sheet

    Rated wind-turbine Power

      300W /400W/ 600W

    Solar Panel Max. power

      200W / 300W / 400W

    Rated battery voltage

    12V/24V Auto configuration, 48V

    Output current Max.

    10A / 30A / 50A



    Indication

    LED or LCD

    Performance

    static power consumption

     30mA (LED);  80mA (LCD)

    Data-transfer

    RS232 to RS485,RJ45 converter (optional, needs extral charges)

    Operating temperature

    -35°C to +55°C

    Store temperature

    -35°C to +80°C

    Humidity

    10% - 90% (NC)

    Temperature compensation

    -35mV/°C (25°C ref.)

    Altitude

    ≤5000 meter

    Protection class

    IP55

    Net-weight

    1.3 kg
