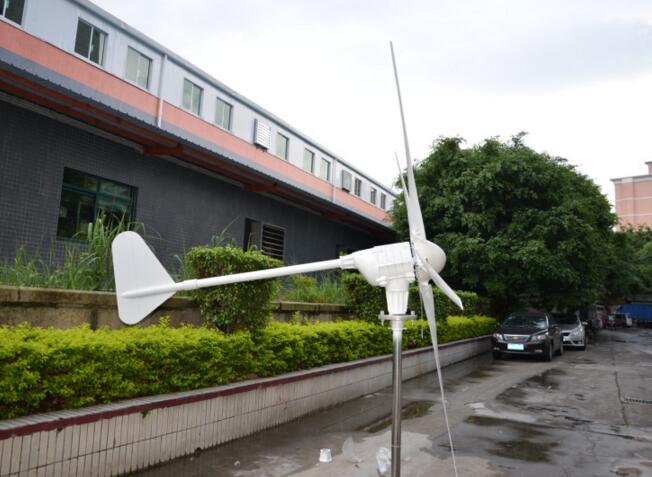

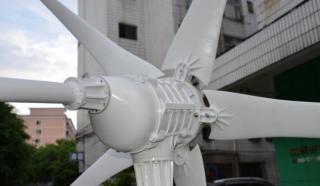

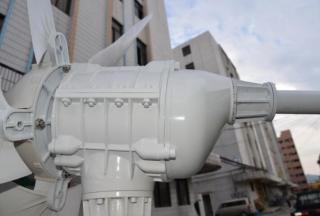

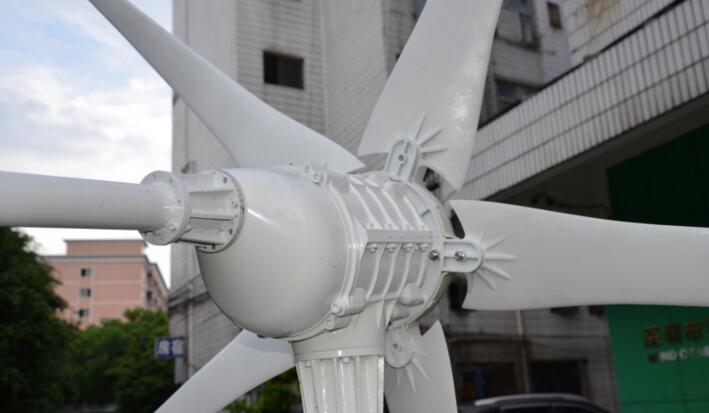

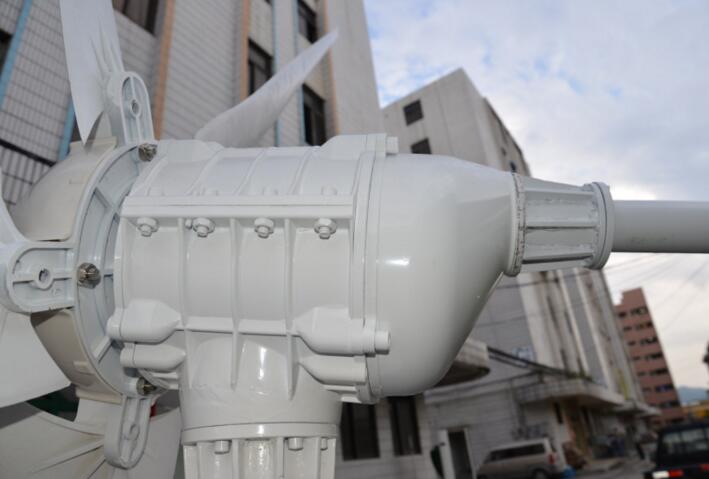

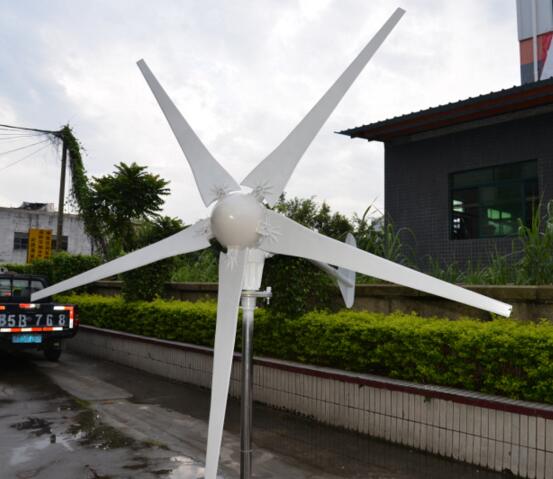

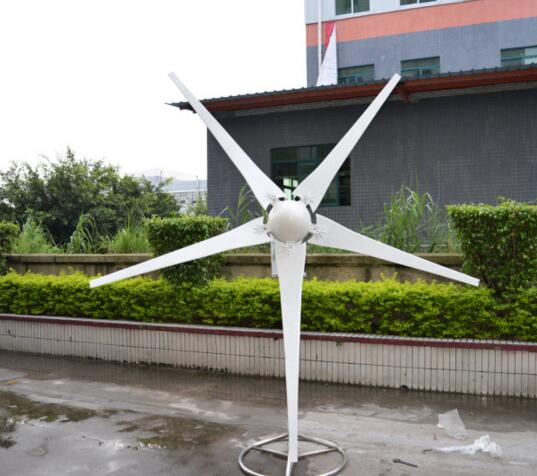

2000W Wind Turbine

    Details




    Model Name

    Z-2000W

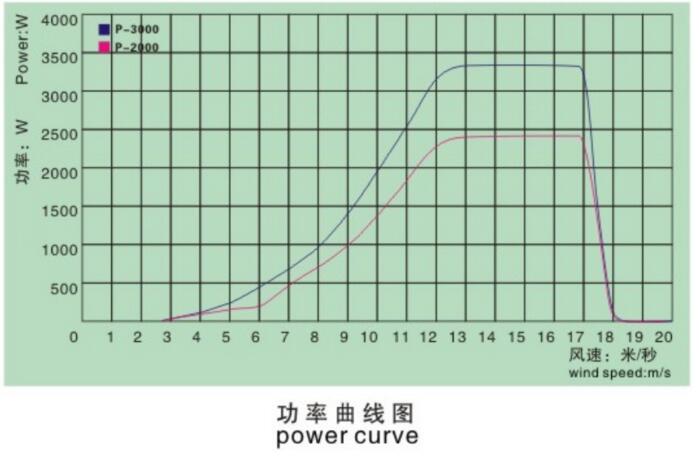

    Max power

    2500w

    Rated power

    2000w





    Rated DC voltage

    DC 48V

    Rated current

    42 A

    Rated speed

    510r/m

    Number of blade

     5 pcs

    Starting wind speed

    3 m/s

    Cut-in wind speed

    3.5 m/s

    Rated wind speed

    12 m/s

    Engine

    Three-phase permanent magnet generator

    Rotor diameter

    2900mm

    Blade material

    Carbon fiber

    Output line anti-winding device

    Overall three-phase commutator

    Over-speed wind protection

    Tip stall protection + turned protection + Electromagnetic brake

    Life span

    15 years

    Equipment surface protection

    Aluminum oxide + plastic coating

    N.W

    65.00 Kg
