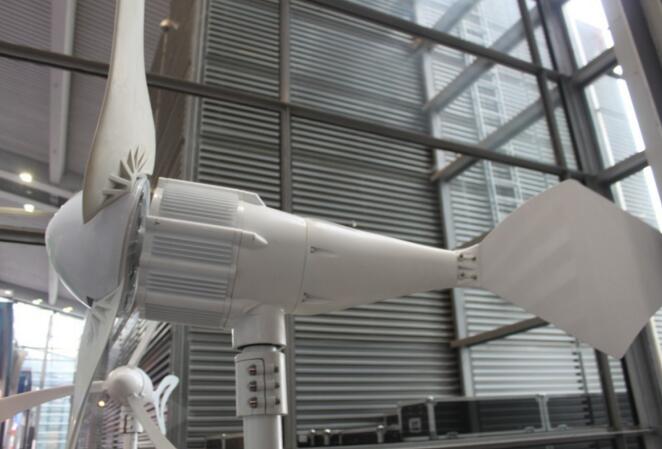

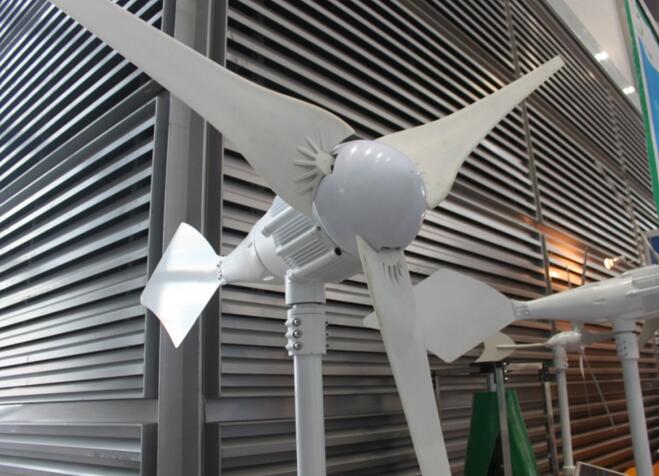

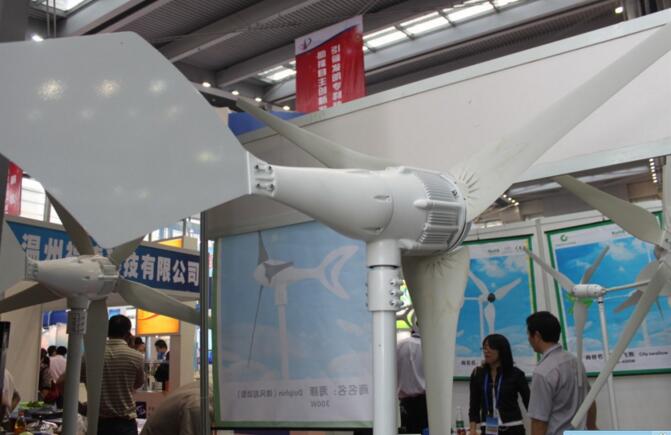

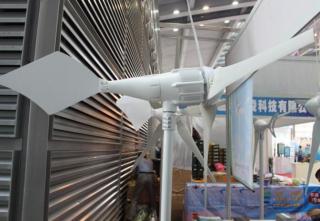

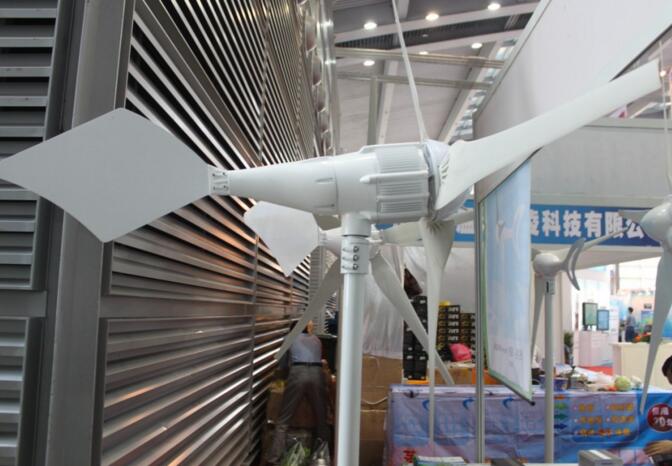

1000W Wind Turbine For Home System

Details



Model Name

Z-1000W

Max power

1200w

Rated power

1000w





Rated DC voltage

DC 24V/48V

Rated current

41A/21A

Rated speed

650r/m

Number of blade

3 or 5 pcs

Starting wind speed

3 m/s

Cut-in wind speed

3.5 m/s

Rated wind speed

12.5 m/s

Engine

Three-phase permanent magnet generator

Rotor diameter

2200mm

Blade material

Carbon fiber

Output line anti-winding device

Overall three-phase commutator

Over-speed wind protection

Tip stall protection + turned protection + Electromagnetic brake

Life span

15 years

Equipment surface protection

Aluminum oxide + plastic coating

N.W

30.00 Kg
