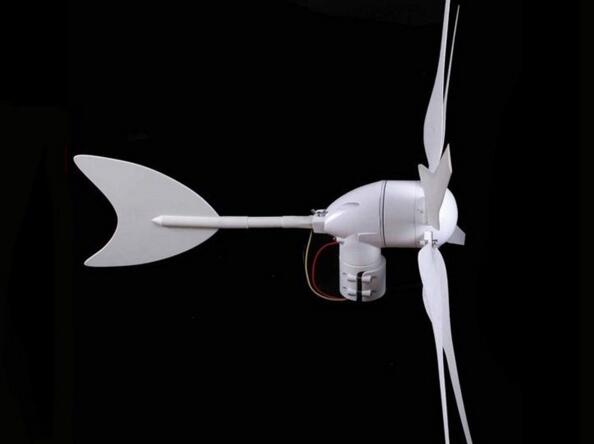

300W Wind Turbine For Home System

    Details



    Model Name

    Z-300W



    Rated power

    300w





    Rated DC voltage

    DC 12V/24V

    Rated current

    12.5A/25A

    Rated speed

    1100r/m

    Number of blade

    6 pcs

    Starting wind speed

    2 m/s

    Cut-in wind speed

    3 m/s

    Rated wind speed

    15 m/s

    Engine

    Three-phase permanent magnet generator

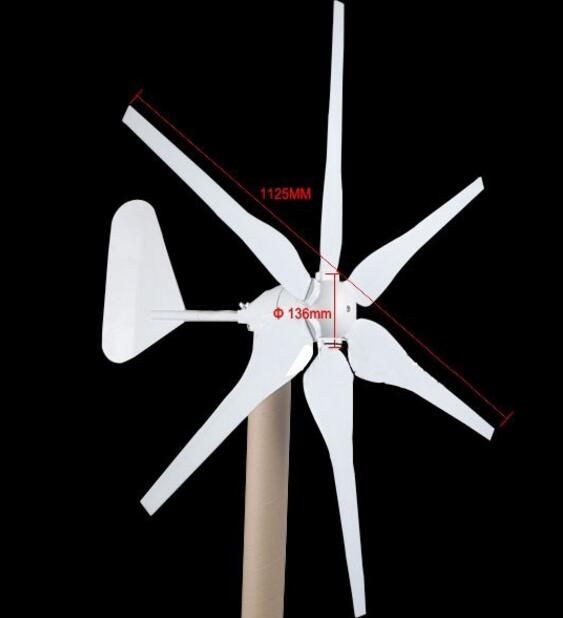

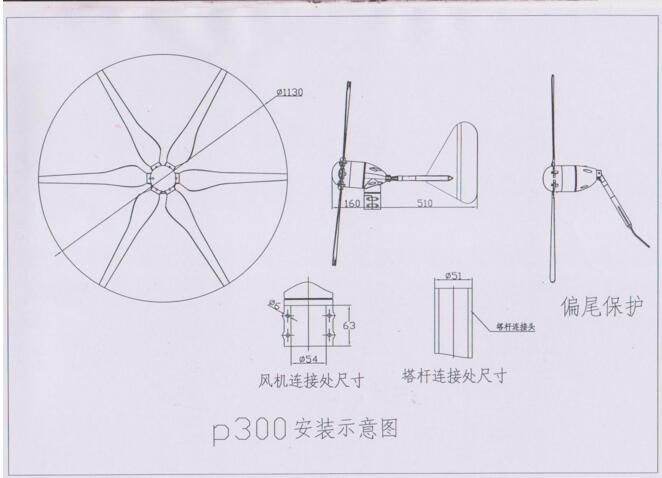

    Rotor diameter

    1130mm

    Blade material

    Carbon fiber

    Output line anti-winding device

    Overall three-phase commutator

    Over-speed wind protection

    Tip stall protection + turned protection + Electromagnetic brake

    Life span

    10 years

    Equipment surface protection

    Aluminum oxide + plastic coating

    N.W

    6 Kg
