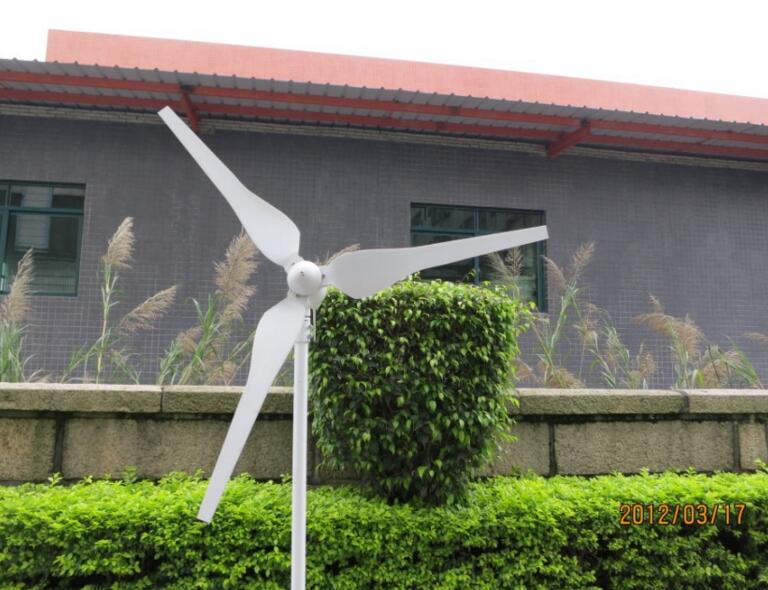

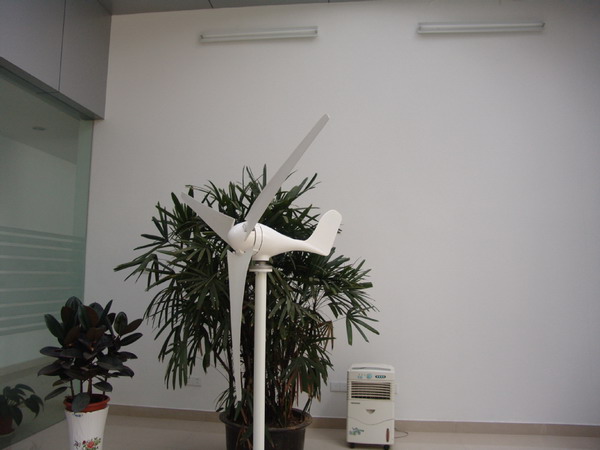

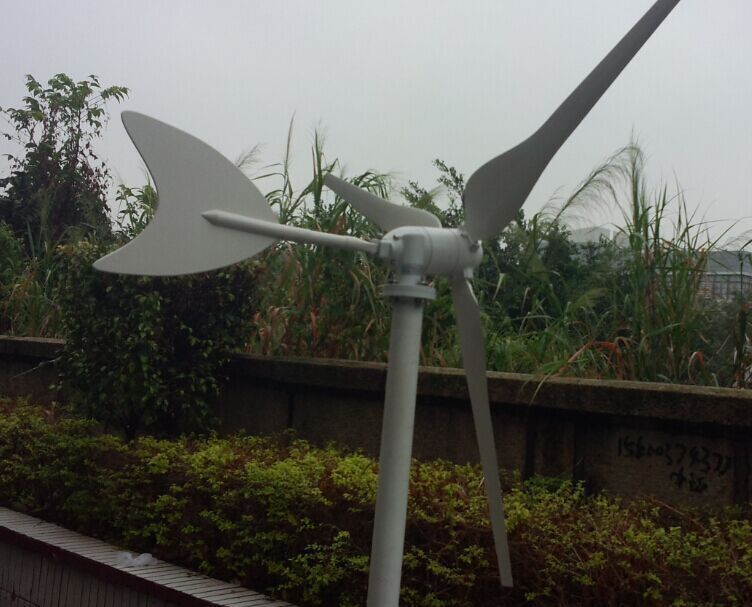

100W Wind Turbine For Home System

    Details



    Model Name

    Z-100W

    Max power

    130w

    Rated power

    100w





    Rated DC voltage

    DC 12V/24V

    Rated current

    4.4A/8.8A

    Rated speed

    1050r/m

    Number of blade

    3 pcs

    Starting wind speed

    2.5m/s

    Cut-in wind speed

    3.5m/s

    Rated wind speed

    12 m/s

    Engine

    Three-phase permanent magnet generator

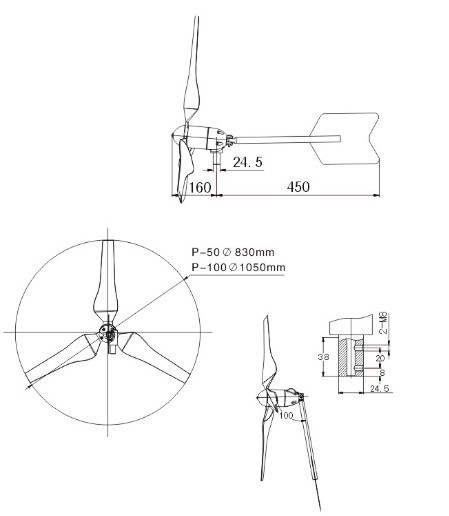

    Rotor diameter

    1050mm

    Blade material

    Carbon fiber

    Output line anti-winding device

    Overall three-phase commutator

    Over-speed wind protection

    Tip stall protection + turned protection + Electromagnetic brake

    Life span

    10 years

    Equipment surface protection

    Aluminum oxide + plastic coating

    N.W

    3.5Kg

    Package dimension

    615mm*260mm*210mm
