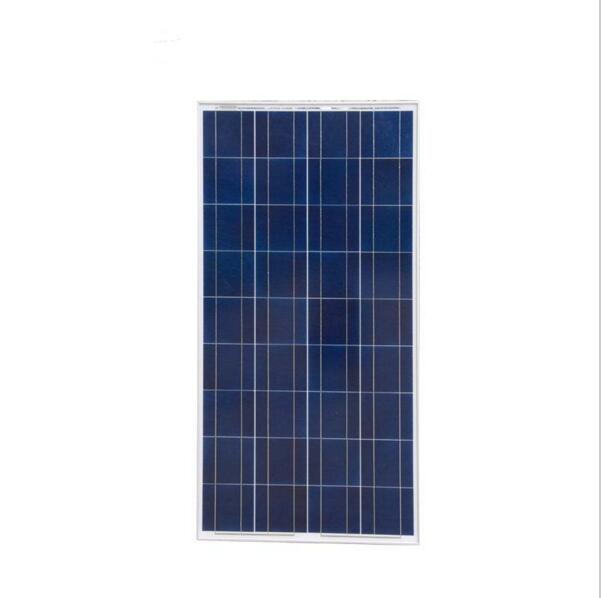

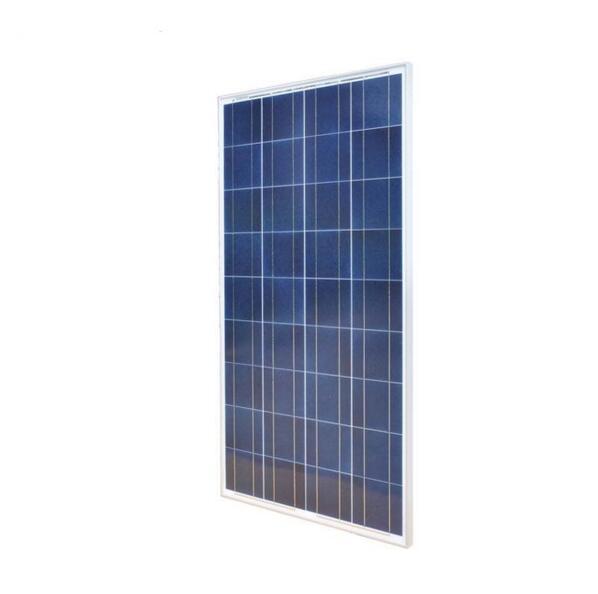

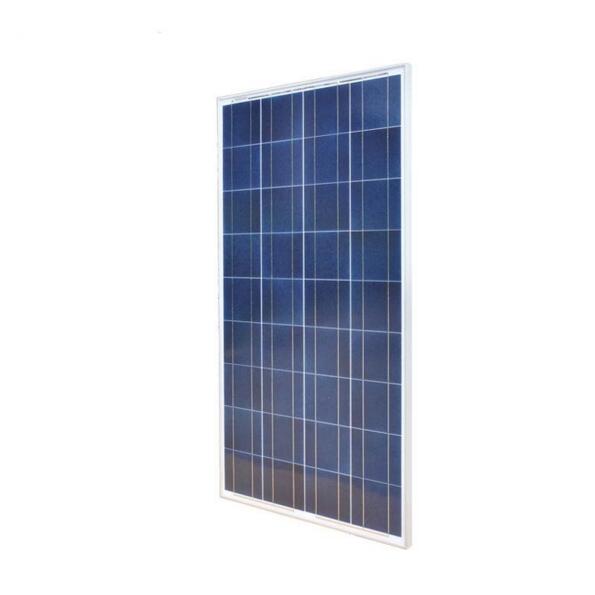

SOLAR PANEL 150W POLY

    Details

    Products advantages:

    -High efficiency cell
    -Strong aluminum alloy frame
    -Power tolerance 3%
    -Excellent weaklight performance




    Data Sheet

    Pmax:150W
    Vmp:18.17V
    Voc:21.6V
    Imp:3.85A
    Isc:3.63A
    Working Temperature :-40 °C to +85 °C
    Max System Voltage :1000 V DC (IEC) / 600 V DC (UL)
    Diode:2 by pass
    Test Standard:Radiometric 1000 W/m2,
    25 °C,AM=1.5;
    Size of Cell :Mono  156*156mm
    Number Of Cell:36(4×9)
    Size of Panel :1476*671*30mm
    Net Weight:10Kgs
    Glass:Temperd Glass
    Frame :Aluminum Alloy

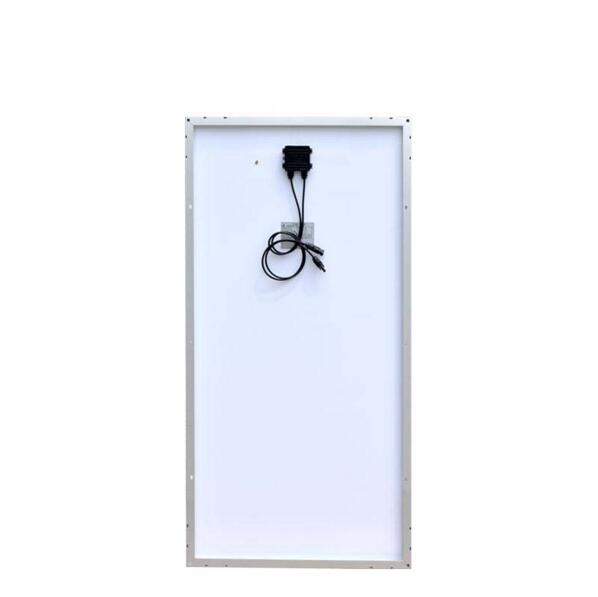

    Junction Box:IP65 rated
    Output Cable : 90cm with MC4
