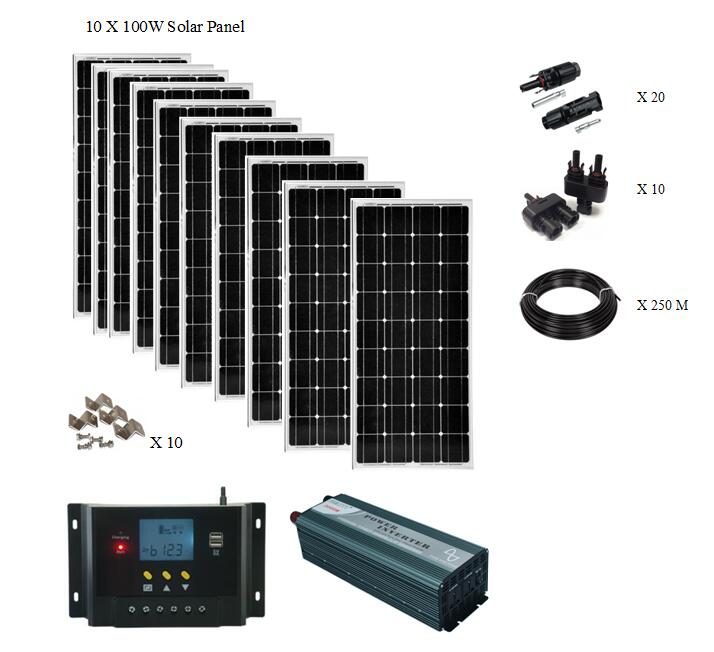

1000W Solar Kits Package List:

1. Solar panel 100w 12v, mono solar panel 10pcs
2. Panel "Z" Bracket 10 sets
3. 2000w pure sine wave inverter
4. 250M TUV Solar Cable 4.0mm2

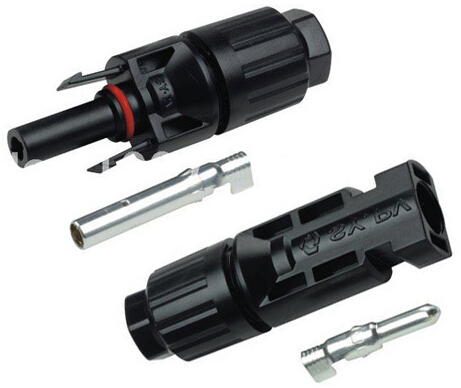

5. TUV MC4 10 Pairs

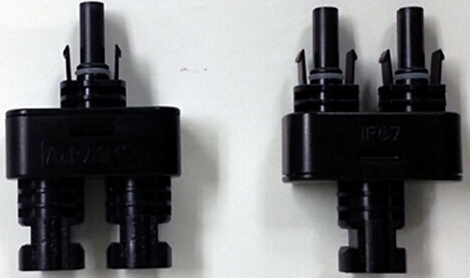

6. TUV MC4 Branch 5 Pairs
7. 60A 12V/24V lcd solar charge controller

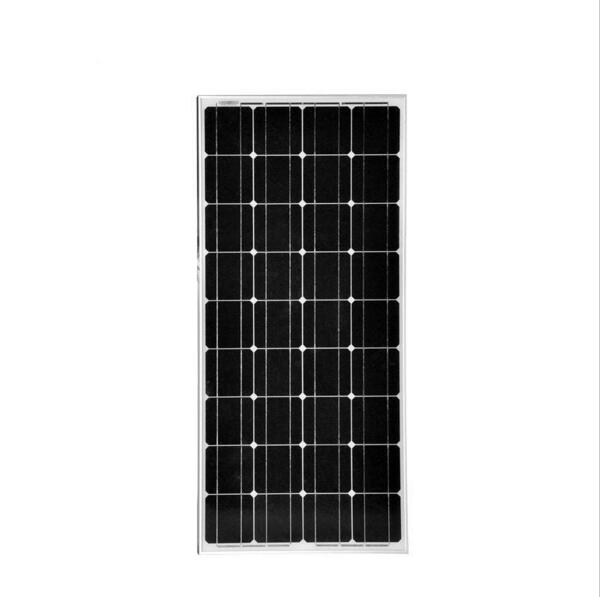

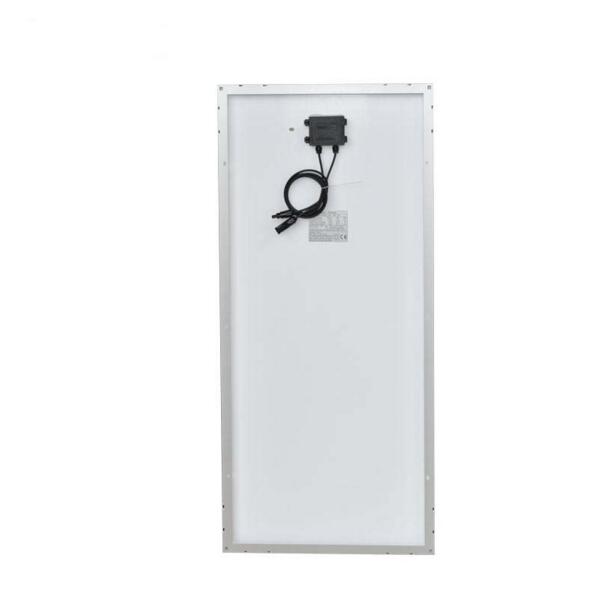

Solar Panel Data

PMAX:100W
VMP:18.17V
VOC:21.6V
IMP:5.51A
ISC:6.06A
Working Temperture:-40 - +85 degree
Weight:7.8Kg
Effiency:17%-19%
Warranty: 25 years

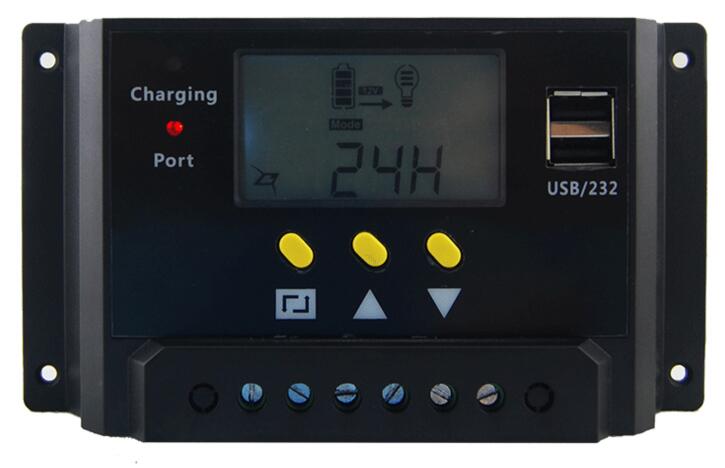

Charge Controller Data
Voltage: 12/24V
Current: 60A
PWM high-efficiency charging controller, LCD display, intelligent control; Temperature compensation

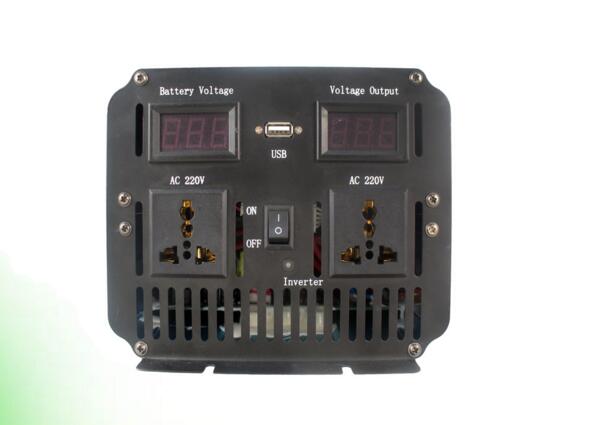

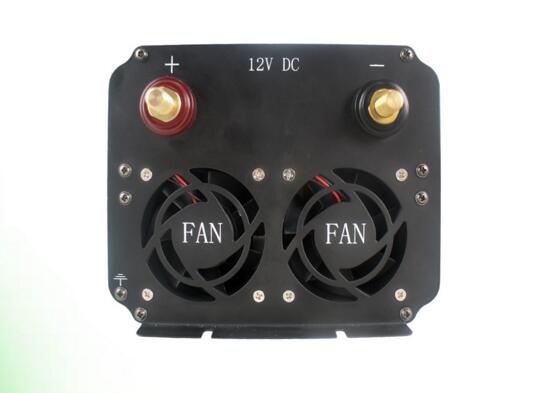

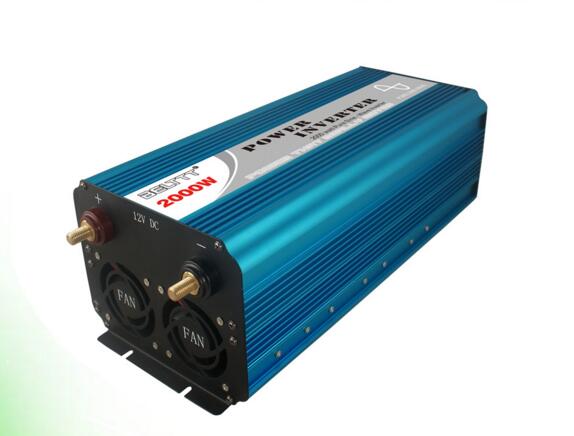

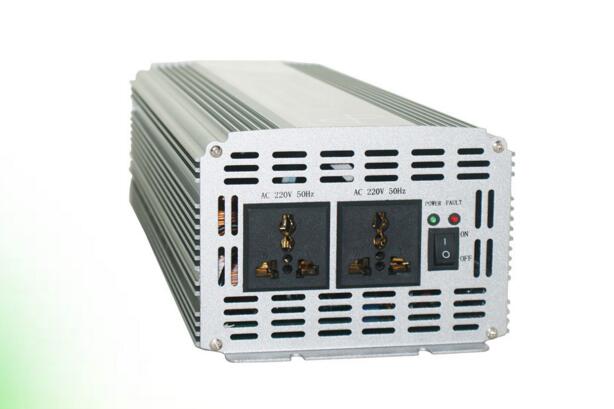

Inverter Data:
* MAXIMUM CONTINUOUS RATING 2000W
* INPUT VOLTAGE DC12V; DC24V
* OUTPUT VOLTAGE 220V+/-5% OR 110V+/-5%
* OUTPUT FREQUENCY 50HZ+/-2HZ OR 60HZ+/-2HZ(Meet users requirment)
* LOW VOLTAGE ALARM(NO-LOAD) < DC 11.0V+/-0.5V; DC 21V+/-0.5V
* LOW VOLTAGE CUT OFF(NO-LOAD) < DC 10V+/-0.3V; DC 20V+/-0.3V
* HIGH VOLTAGE CUT OFF(NO-LOAD) > DC 15V+/-0.5V; DC 30V+/-0.5V
* NO-LOAD LOSS < 0.6A
* TRANSFER EFFICIENCY > 86%
* OUTPUT WAVEFORM Pure sine waveform
* PRODUCT SIZE 450*150*90mm
