600W Off-Grid Kit

    Details

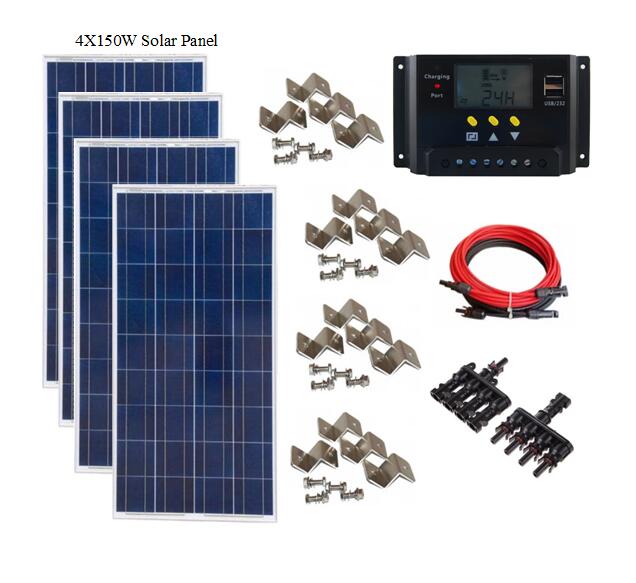

    600W Solar system kits package:

    1. 150w solar panel 12V, Poly, 4pcs

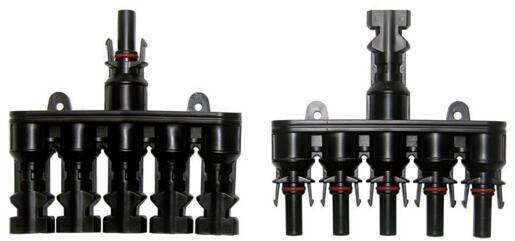

    2. MC4 Branch 4 to 1, 1 pc

    3. Panel "Z" Brakets, 1 set for 1 panel

    4. LCD Charge controller, 12/24V, 50Amp

    5. MC4 Cable Lead:  Red - 10M, Black - 10M

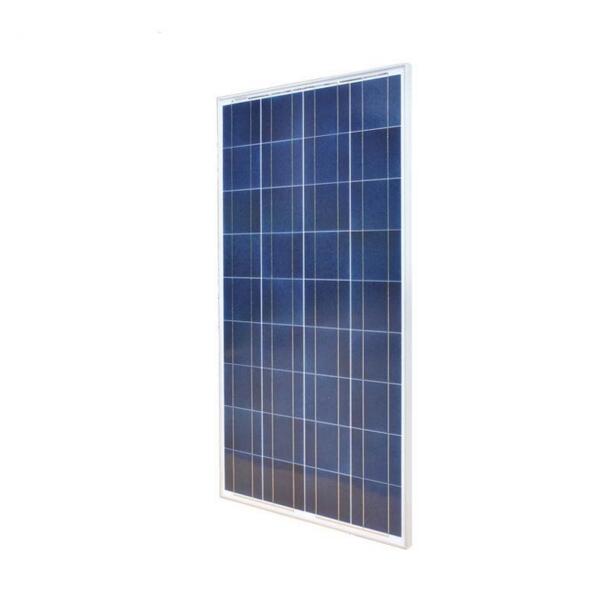

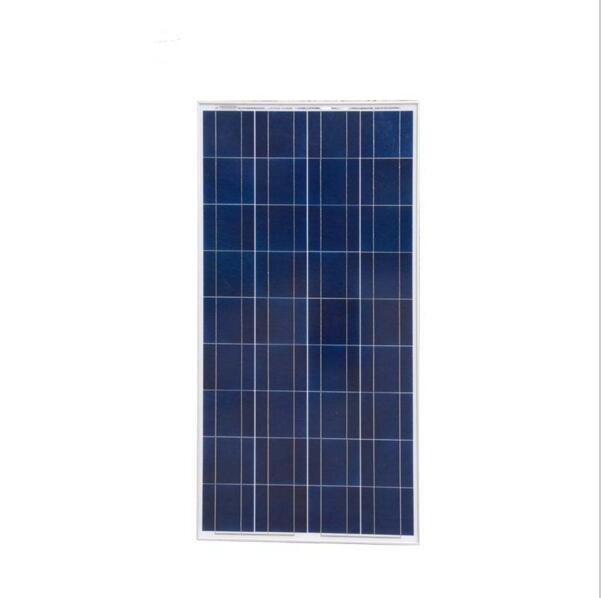

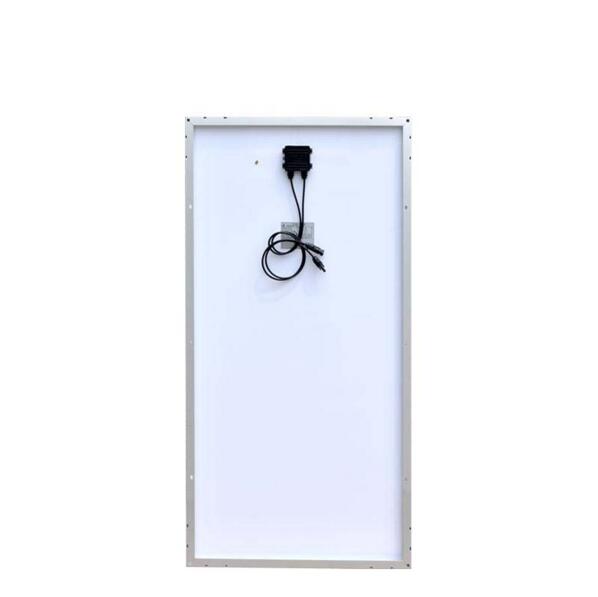

    150W Solar Panel Data

    Model No.

    SFP150 W

    Maximum Power at STC (Pmax)

    150 W

    Optimum Operating Voltage (Vmp)

    18 V

    Open - Circuit Voltage (Voc)

    21.6 V

    Optimum Operating Current (Imp)

    8.33A

    Short - Circuit Current (Isc)

    9.16A

    Cell Efficiency

    about 17.2 %

    Operating Module Temperature

    -40 °C to +85 °C

    Maximum System Voltage

    1000 V DC (IEC) / 600 V DC (UL)

    Diodes

    2 by pass

    Power Tolerance

    -3/+3 %

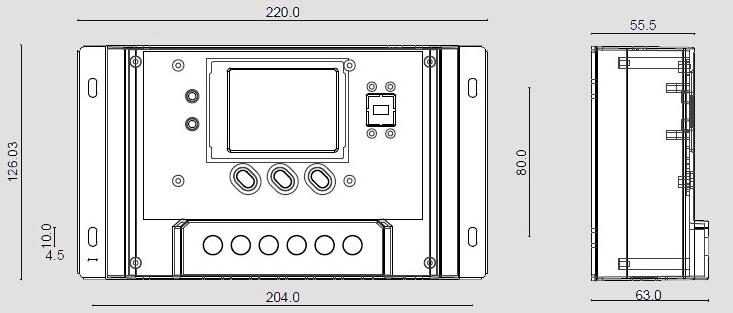

    Charge Controller Data:

    System Voltage: 12/24V, PWM Type, LCD Display

    Current: 50Amp

    Max system voltage: 48V

    USB Output: 5V, 1 Amp
