200W Off-Grid Kit

    Details

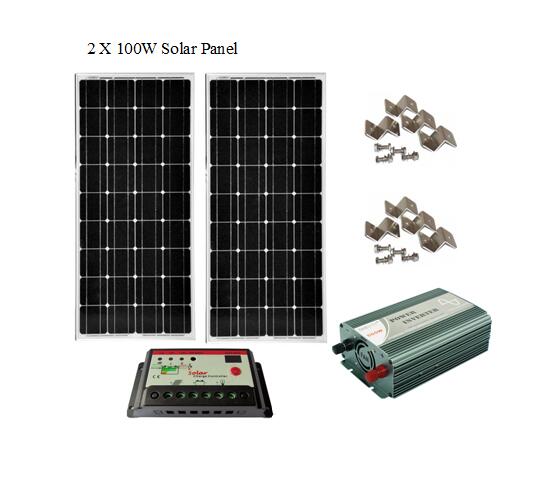

    200W Solar Kits Package List:


    1.  2 pcs Solar panel 100w 12v, Mono
    2.  Panel "Z" Bracket for 2 panels
    3.  500w pure sine wave inverter

    4.  30A 12V/24V PWM solar charge controller

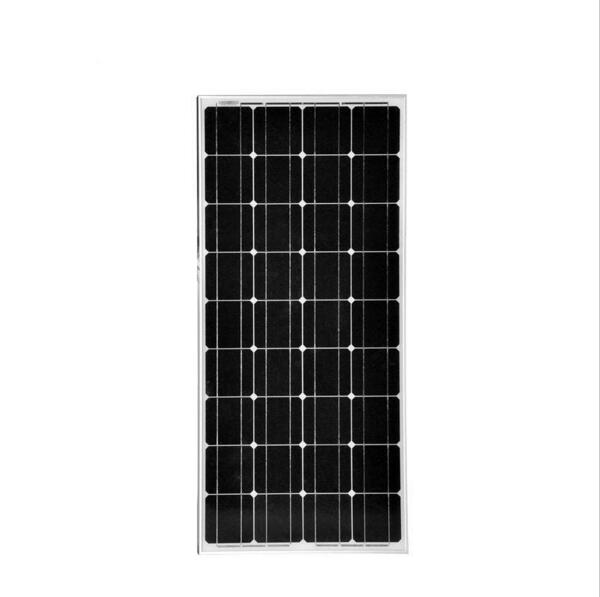

    Solar Panel Data

    PMAX:100W
    VMP:18.17V
    VOC:21.6V
    IMP:5.51A
    ISC:6.06A
    Working Temperture:-40 - +85 degree
    Weight:7.8Kg
    Effiency:17%-19%
    Warranty: 25 years

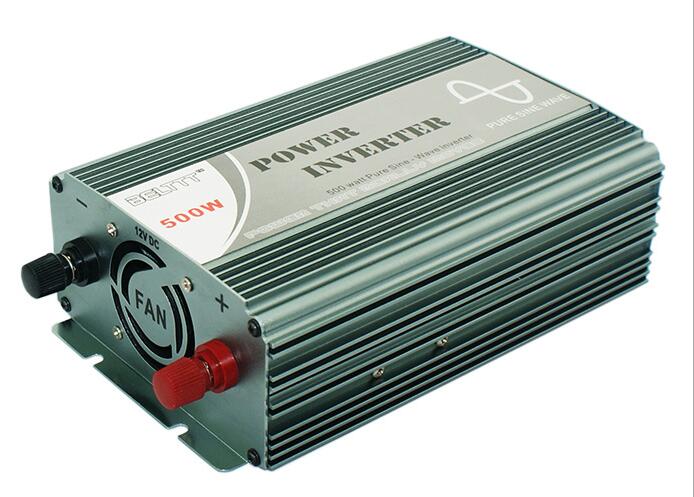

    500W Inverter Data

    * MODEL BEP500S
    * MAXIMUM CONTINUOUS RATING 500W
    * INPUT VOLTAGE DC12V; DC24V
    * OUTPUT VOLTAGE 220V+/-5% OR 110V+/-5%
    * OUTPUT FREQUENCY 50HZ+/-2HZ OR 60HZ+/-2HZ(Meet users requirment)
    * LOW VOLTAGE ALARM(NO-LOAD) < DC 11.0V+/-0.5V; DC 21V+/-0.5V
    * LOW VOLTAGE CUT OFF(NO-LOAD) < DC 10V+/-0.3V; DC 20V+/-0.3V
    * HIGH VOLTAGE CUT OFF(NO-LOAD) > DC 15V+/-0.5V; DC 30V+/-0.5V
    * NO-LOAD LOSS < 0.4A
    * TRANSFER EFFICIENCY > 86%
    * OUTPUT WAVEFORM Pure sine waveform
    * PRODUCT SIZE 255*150*71mm
    * PRODUCT N.W. 1900G

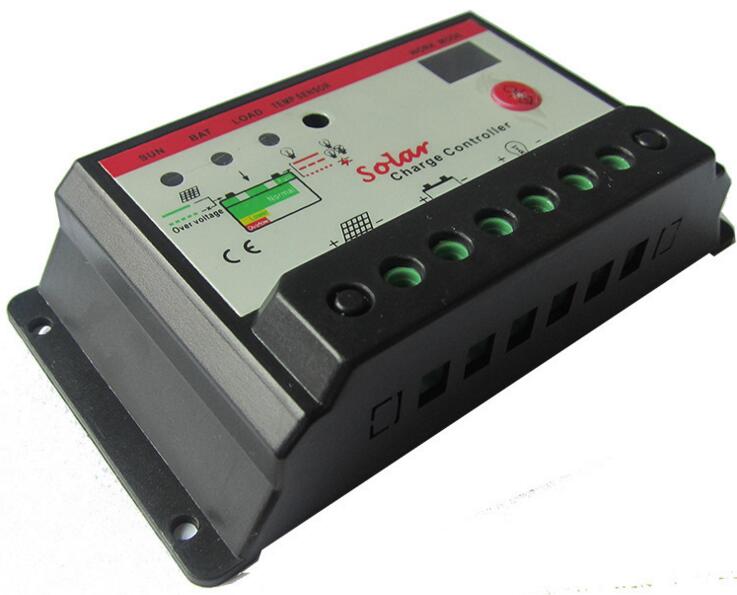

    Charge Controller Data:

    System Voltage: 12/24V, PWM Type

    Current: 30Amp

    Max system voltage: 48V
