300 Watt 12V Off-Grid Solar Panel Kit

    Details

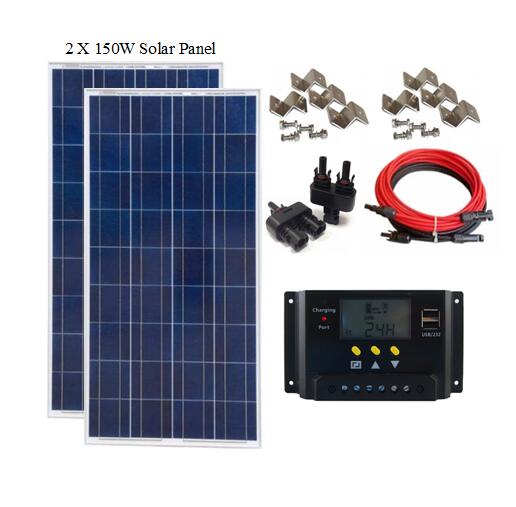

    300W Kits includes:


    1.   2 x 150w Poly Solar Panel, 12V System, 20 Performance guarantee, CE & TUV Approved
    2.   2 x Set of 4 Aluminium Z Brackets

    3.   LCD Charge controller, 12/24V, 30Amp

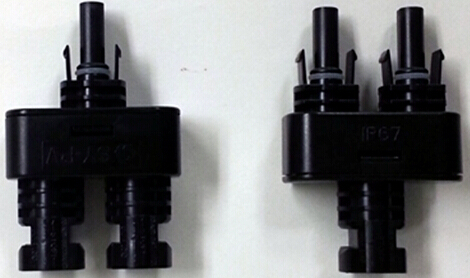

    4.   MC4 Branch Connector 1 pair

    5.   MC4 Cable Lead:  Red - 10M, Black - 10M

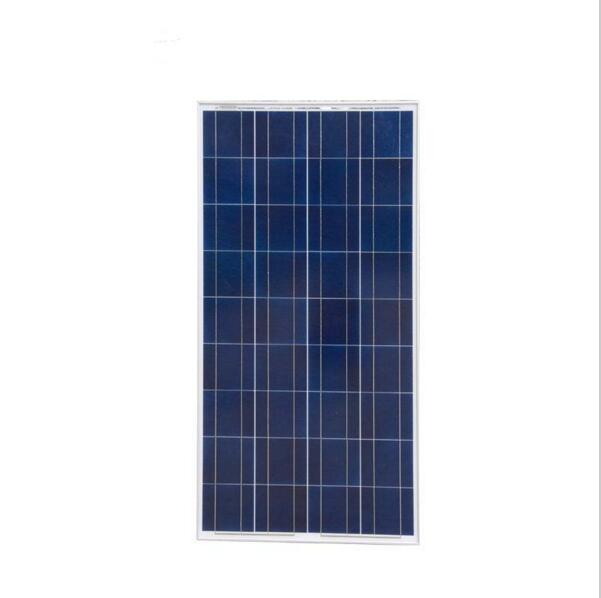

    150W Solar Panel Data

    Model No.

    SFP150 W

    Maximum Power at STC (Pmax)

    150 W

    Optimum Operating Voltage (Vmp)

    18 V

    Open - Circuit Voltage (Voc)

    21.6 V

    Optimum Operating Current (Imp)

    8.33A

    Short - Circuit Current (Isc)

    9.16A

    Cell Efficiency

    about 17.2 %

    Operating Module Temperature

    -40 °C to +85 °C

    Maximum System Voltage

    1000 V DC (IEC) / 600 V DC (UL)

    Diodes

    2 by pass

    Power Tolerance

    -3/+3 %

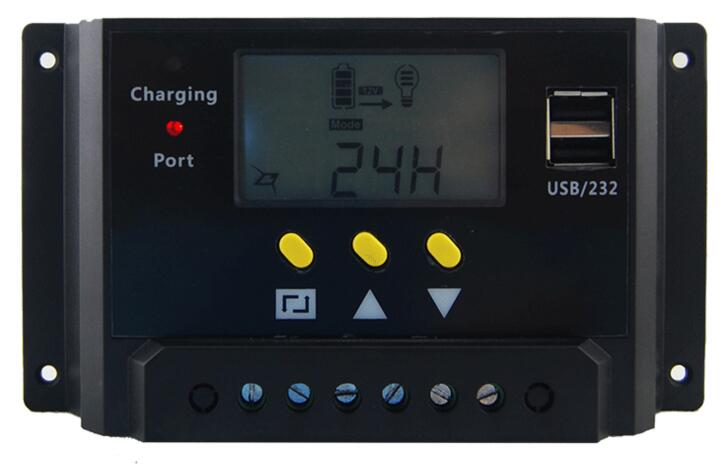

    Charge Controller Data:

    System Voltage: 12/24V, PWM Type, LCD Display

    Current: 30Amp

    Max system voltage: 48V

    USB Output: 5V, 1 Amp
