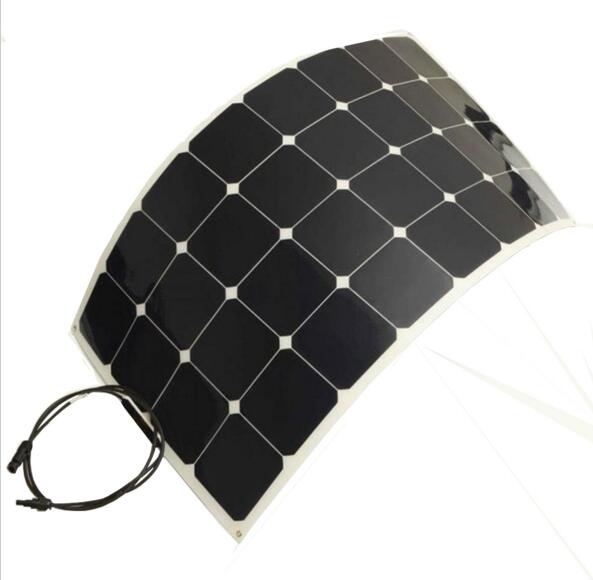

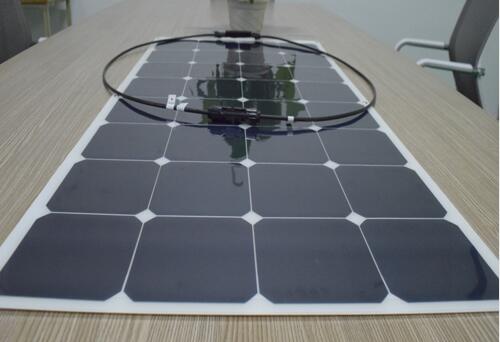

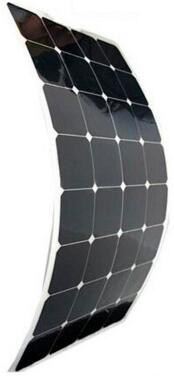

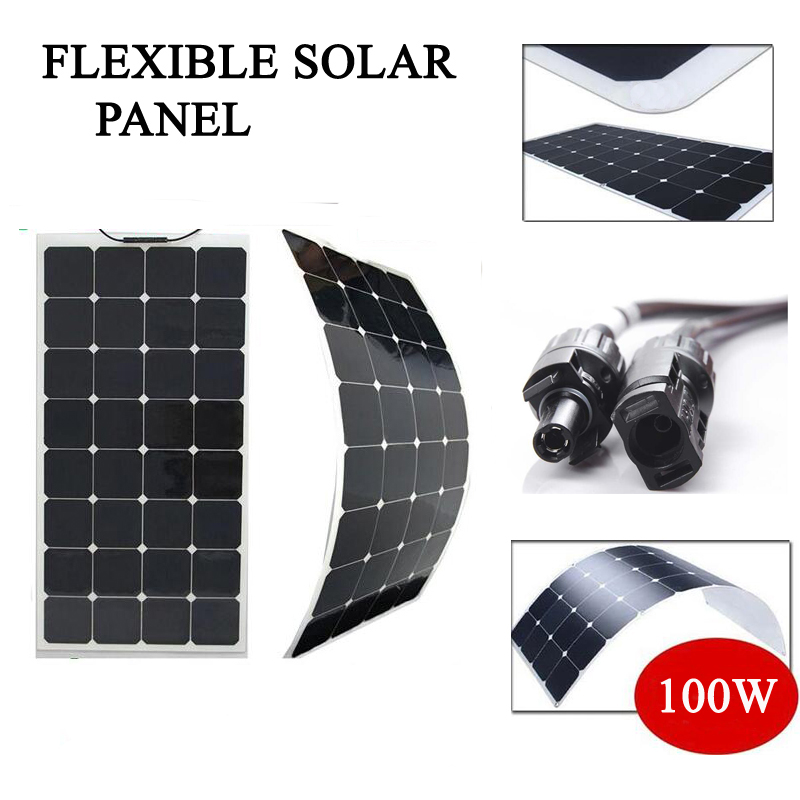

100W 12V PV flexible solar panel cell


    100W flexible solar panel for solar powered fishing boats backside connection for 12V solar panel module battery solar charger

    The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for:

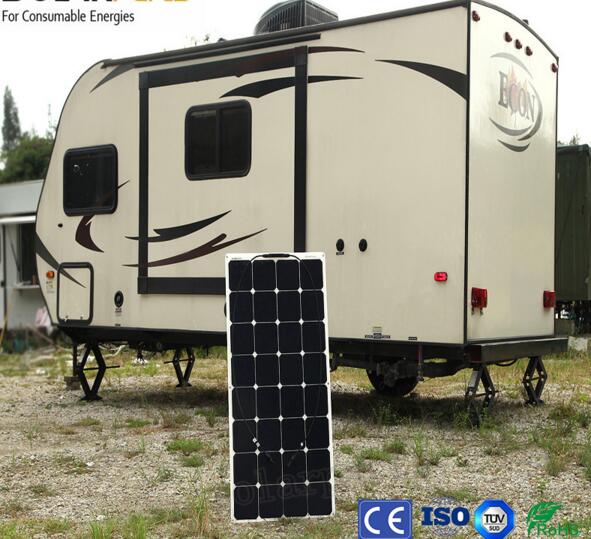

    Outdoor sports, travel, camping, etc.

    The solar panel 12V can as the battery charger, 18650 battery charger, rechargeable charger and the USB/car charger.

    After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone,etc

    Electrical Parameters at Standard Test Conditions

    Rated Max Power: 100W±5%(W)
    Module Efficiency: 21%-24%
    Solar Panel size:1050mmX540mmX3mm
    Manufacturing Process: Sunpower Solar Panel
    Open-Circuit Voltage: 21.6V±5%
    Short-Circuit Current: 6.06A±5%
    Voltage at Pmax: 18.0v±5%
    Current at Pmax: 5.56A±5%
    Rated Max Power: 100.0W±5%
    Module Efficiency: 24%±2%
    Quality Assurance: 1 year quality assurance
    Notice: Using on Environment Temperature: -30℃~60℃
    Using on Environment humidity :45%~95%
    Data under standard testing conditions (STC):1000 W/㎡ , AM1.5 , 25 ℃
