1000W Solar System

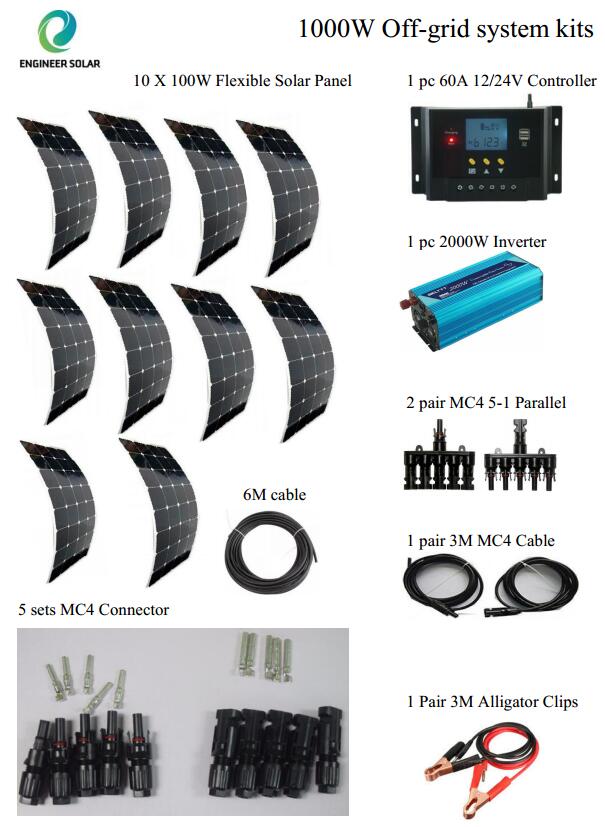

    1000W solar system kits include the following list

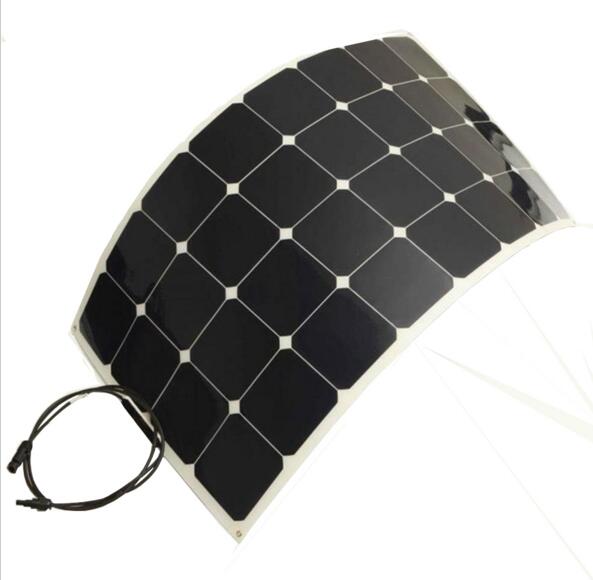

    1. 10 pcs 100W flexible solar panel


    2.  1 pcs 60A 12V/24V solar controller

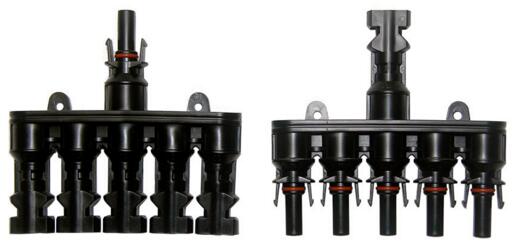

    3.  2 sets of 5 in 1 parellel connection MC4 adaptor
    4.  1 pc 6M cable
    5.  1 pair 3M MC4 extending cable
    6.  1 set red/black 3M cable with alligator clip for rechargeable clips

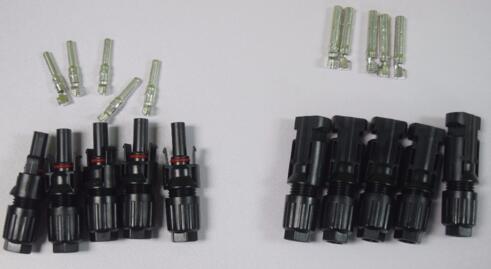

    7.  5 pais MC4 male/female connectors for DIY purpose.

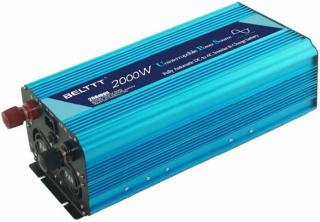

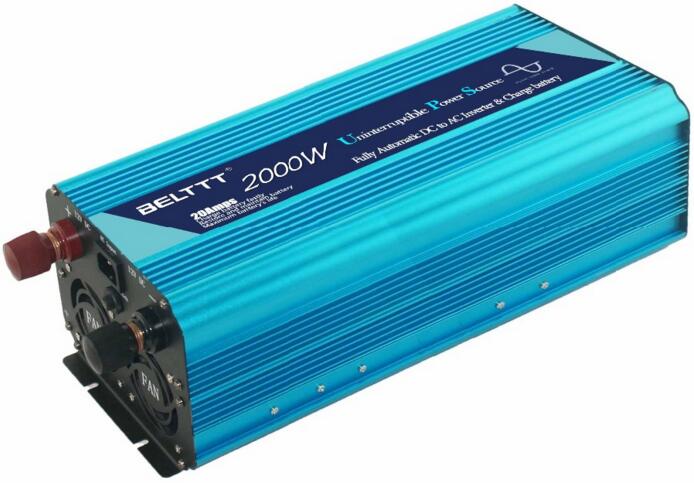

    8.  1 pc 2000W Inverter

    Solar Panel data sheet

    Rated Max Power: 100W±5%(W)
    Module Efficiency: 21%-24%
    Solar Panel size:1050mmX540mmX3mm
    Manufacturing Process: Sunpower Solar Panel
    Open-Circuit Voltage: 21.6V±5%
    Short-Circuit Current: 6.06A±5%
    Voltage at Pmax: 18.0v±5%
    Current at Pmax: 5.56A±5%
    Rated Max Power: 100.0W±5%
    Module Efficiency: 24%±2%
    Quality Assurance: 1 year quality assurance
    Notice: Using on Environment Temperature: -30℃~60℃
    Using on Environment humidity :45%~95%
    Data under standard testing conditions (STC):1000 W/㎡ , AM1.5 , 25 ℃
