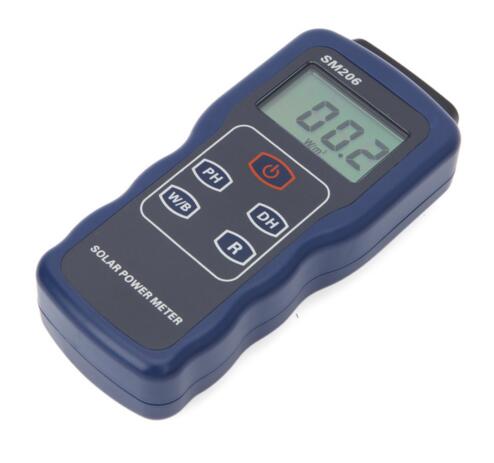

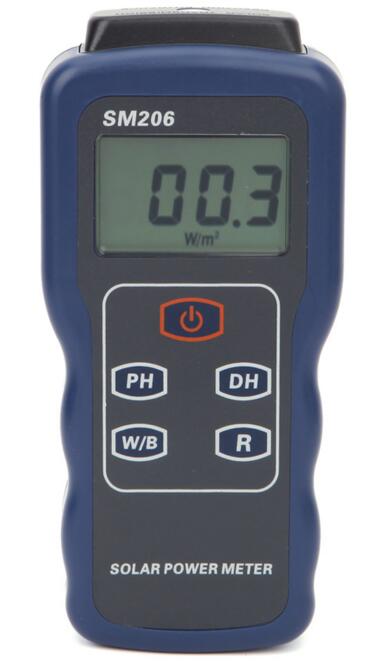

SM206 Solar Power Meter

    Details

    Solar Power Meter

    SM206


    一、Features
     Selectable from two units: W/㎡ and Btu
     Peak hold function
     Data hold function
     Measure directly without adjustment
     Steadily measure for a long period


    二、Specifications


    1.Resolution: 0.1W/m2, 0.1 Btu/(ft2-h)
     Error range: ± 10W/m2 [±3 Btu/(ft2-h)] or ±5% of the measured value Temperature error: ±0.38W/m2 / ℃ [ ±0.12 Btu/(ft2-h)/℃] deviation at 25℃
     Display: 3-3/4LCD display, maximum displayed numerical value 3999
     Shift: <±3% /year
     Overload display “OL”


    2.Range: 0.1-399.9 W/m2, 1-3999 W/m2, 0.1-399.9 Btu/(ft2-h), 1-3999 Btu/(ft2-h)
     Sampling time: 0.5 second
     Operation temperature and humidity: 0°C to 50°C <80%RH
     Storage temperature and humidity: -10°C to 60°C <70%RH
     Dimensions and weight: 132(L) x 60(W) x 38 (H)mm
     Weight: approx. 150g
     Battery needed: 9V battery
     Battery operation life: Approx. 100 hours
