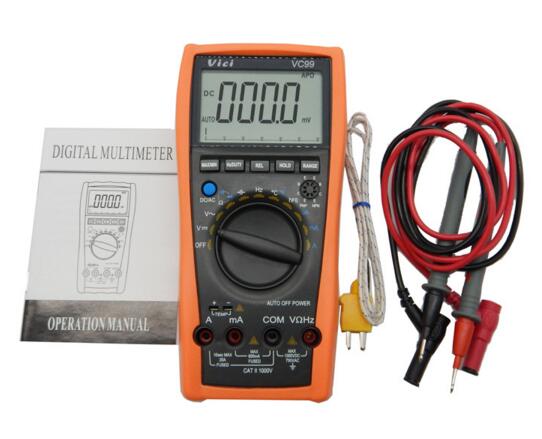

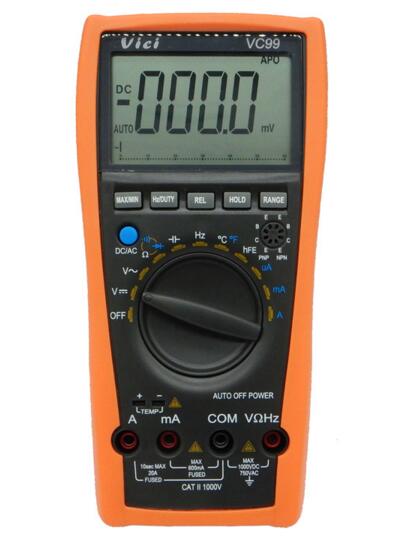

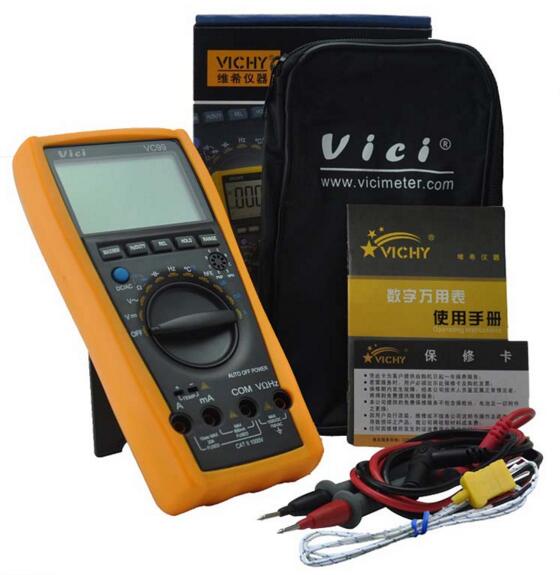

VICI Original VC99 Auto Range Digital Tester

    Details


    Full function protection, anti-high voltage circuit design

    Low battery display indication
    Unit symbol display and 61 selection analog bar display
    With automatic polarity
    With hard sealed IC
    Selectable between °C and °F

    Relative Value, Frequency/Duty cycle, transistor measuring and data hold



    Basic function

    Range

    Basic accuracy

    DCV

    600mV/6V/60V/600V/1000V

    ±(0.5%+4)

    ACV

    6V/60/600/750V

    ±(0.8%+6)

    DCA

    600uA/6000uA/60mA/600mA/6A/20A

    ±(0.8%+3)

    ACA

    600uA/6000uA/60mA/600mA/6A/20A

    ±(1.5%+10)

    Resistance

    600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

    ±(0.8%+5)

    Capacitance

    40nF/ 400nF/4uF/40uF/400uF/2000uF

    ±(3.5%+8)

    Frequency

    100Hz/1kHz/10kHz/100kHz/1MHz/60MHz

    ±(0.5%+4)

    Temperature

    (-40~ 1000)°C

    ±(0.75%+3)

    (0~ 1832)°F

    ±(1.2%+3)




    Special function

    VC99

    Diode and hFE test

    Yes

    Continuity alarm

    Approx. less than 30Ω±10Ω

    Low battery indicator

    Approx. less than 2.4 V

    Duty cycle measuring

    Yes

    Data hold

    Yes

    Auto power off

    About 15 minutes

    Analog bar

    Yes

    Function protection

    Yes

    Input impedance

    10MΩ

    Sampling rate

    3times/s

    AC frequency response

    40-400Hz

    Operation method

    Auto or manual range

    Max display

    6000

    LCD size

    Approx. 65x41mm (L*W)

    Battery

    1.5V AAA×2 (not be included)

    Power dissipation

    Quiescent current approx. 2mA

    Meter color

    Body: Dark grey; Holster: Orange

    Meter weight

    About 290g

    Meter size

    Approx. 185×93×35mm (L*W*H)
