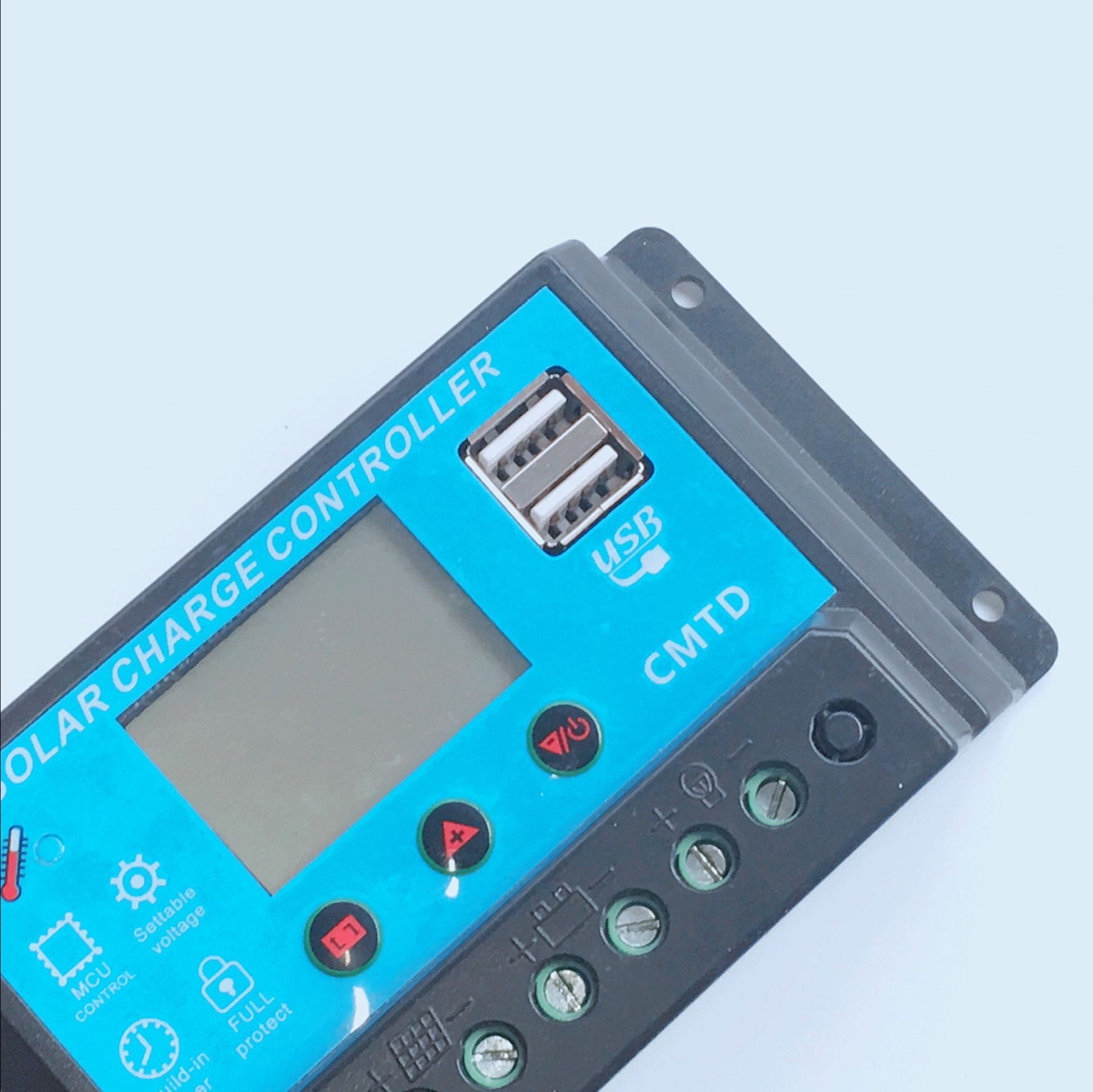

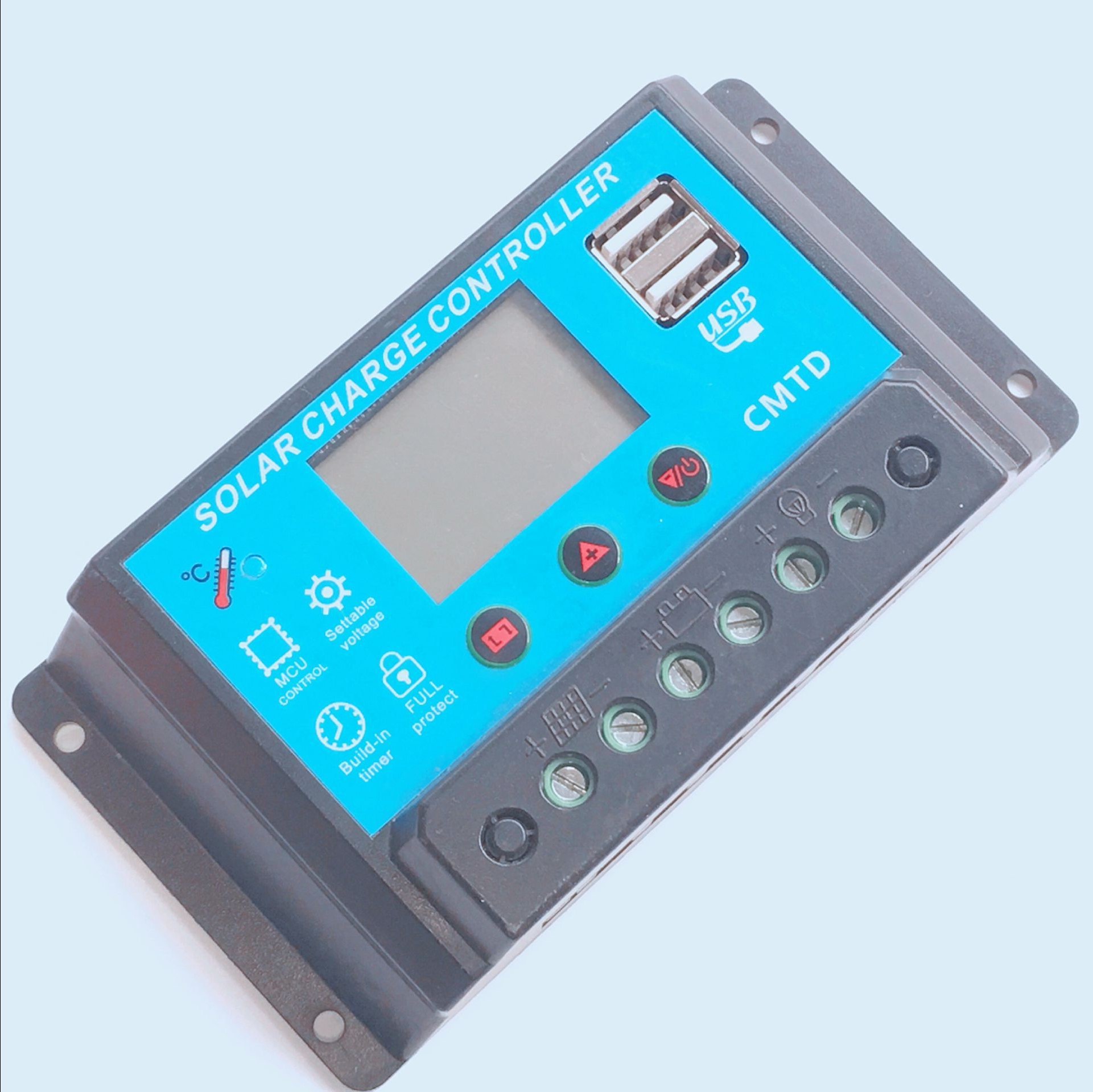

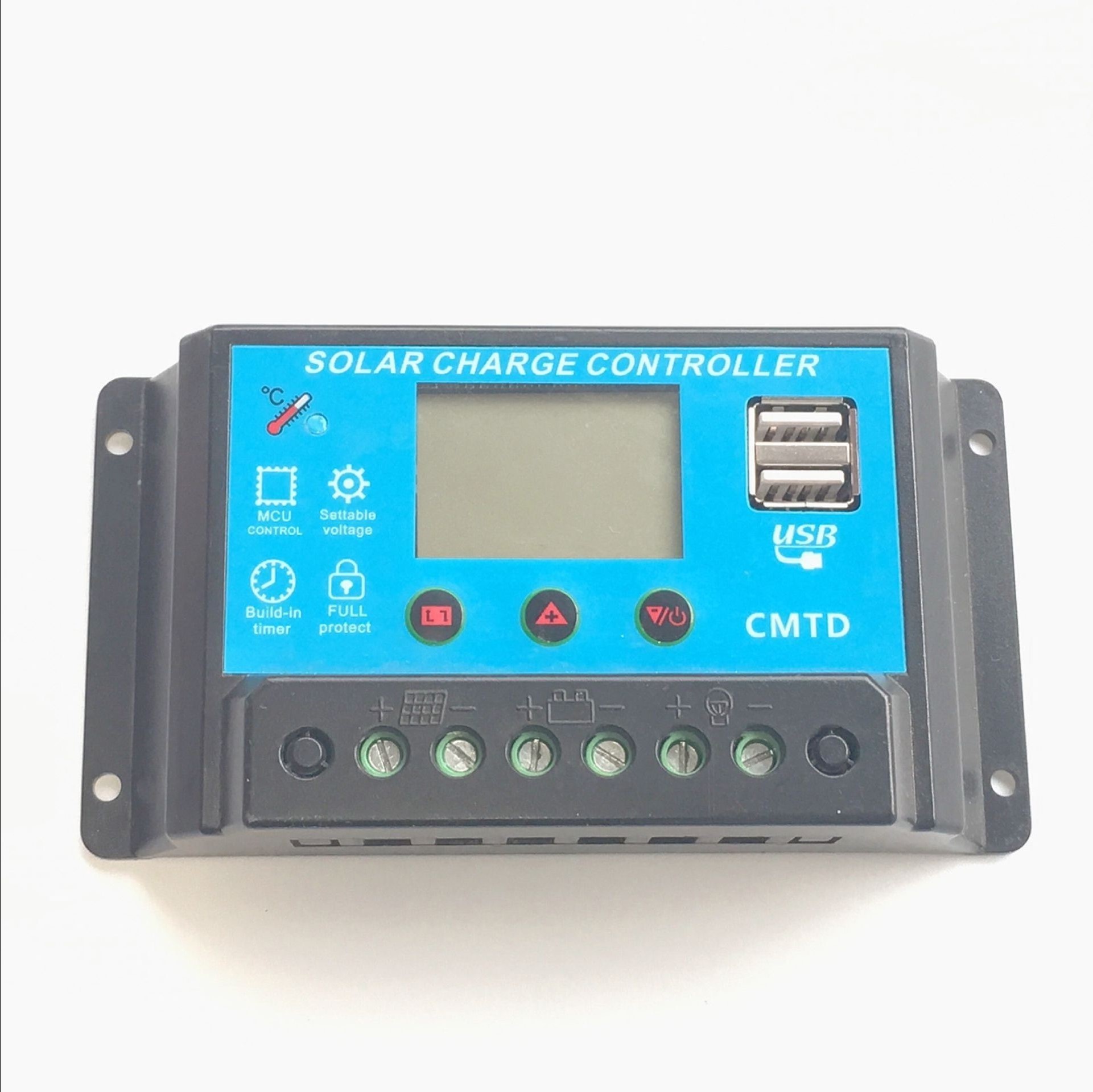

12V / 24V Auto Switch Solar Charge Controller with LCD and Dual USB Ports

    Details


    This model charge control manages the solar panels, batteries and loads. It adds a variety of protection functions, allowing you to run a safe and efficient system. The charge controller has been  designed to work with systems up to 300W, making it ideal for a range of small off grid setups. The extremely low consumption makes the controller suitable for a range of applications

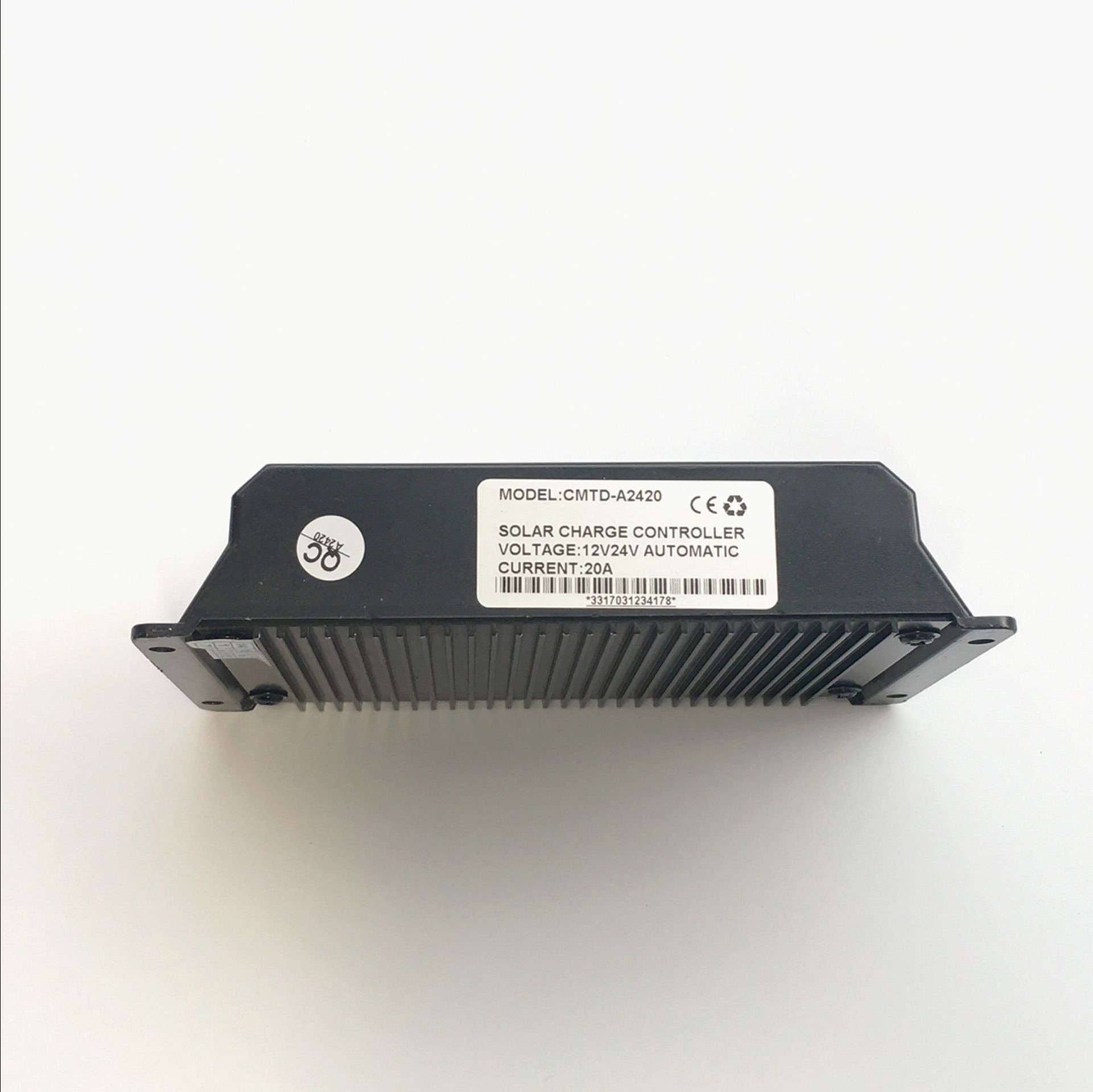

    Model CMTD

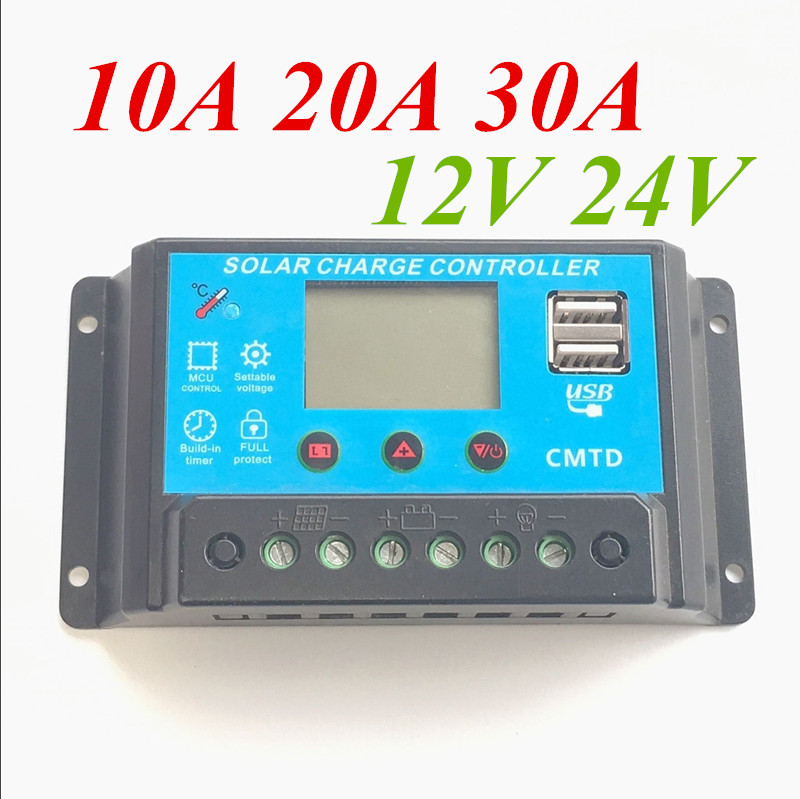

    Rated Charge Current 10/20/30A
    Rated Discharge Current: 10/20/30A
    Rated Voltage 12V/24V auto work
    Over-Charge Protection 13.7/27.4V
    Low Voltage Reconnection 12.6/25.2V
    Low Voltage Protection 10.5/21V
    Charging Mode PWM mode
    Temperature Compensation Yes
    Static Current: ≤45mA
    Voltage Drop: <200mV
    Working Temperature: -20°C ~ +70°C
    Operating Humidity: ≤90% N.C.
    Weight: 0.58KG
    Size (L*W*H): 174*140*55mm
    Package: 30 pieces/carton
    Warranty: 24 months

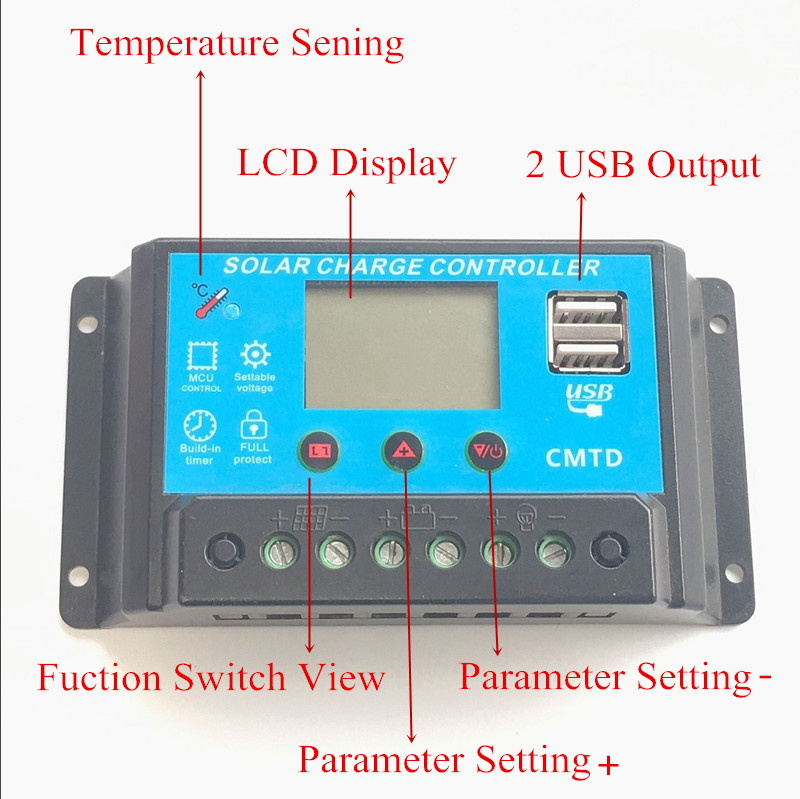

    Function: LCD Display & 2pcs USB
    Note: Protection Voltage Can User-defined



    • Estimated 15 year life

    • PWM series battery charging (not shunt)
    • Automatice battery type detection
    • Jumper to eliminate telecom noise
    • Temperature compensation

    • Very low voltage drops

    • Current compensated low voltage disconnect (LVD)
    • With full controller protection
