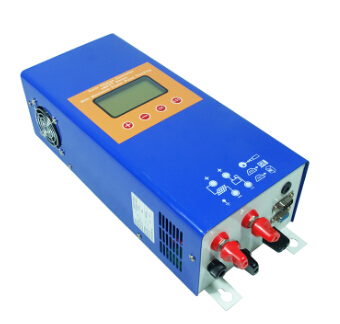

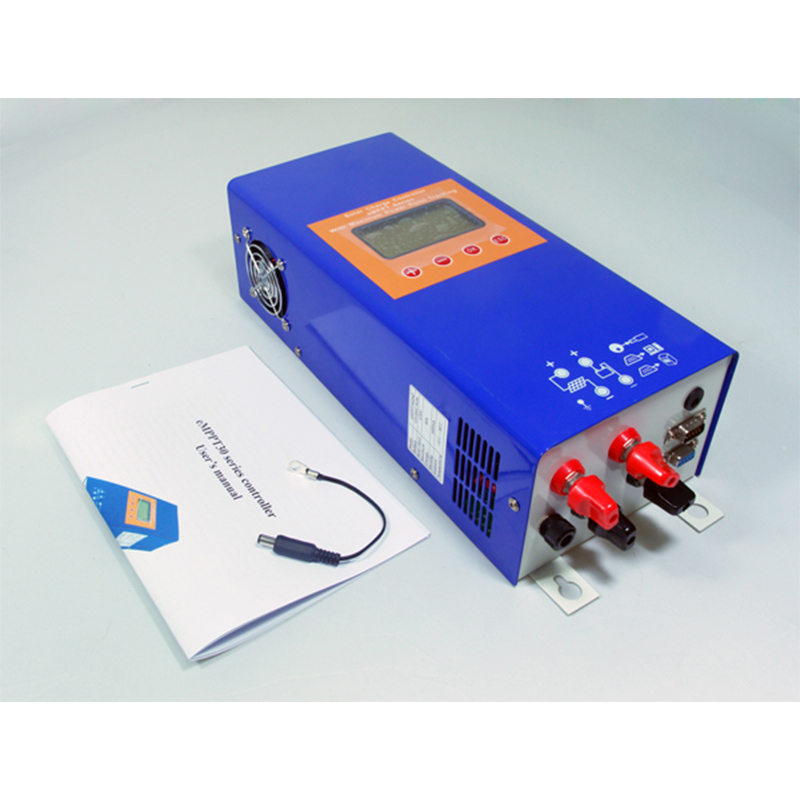

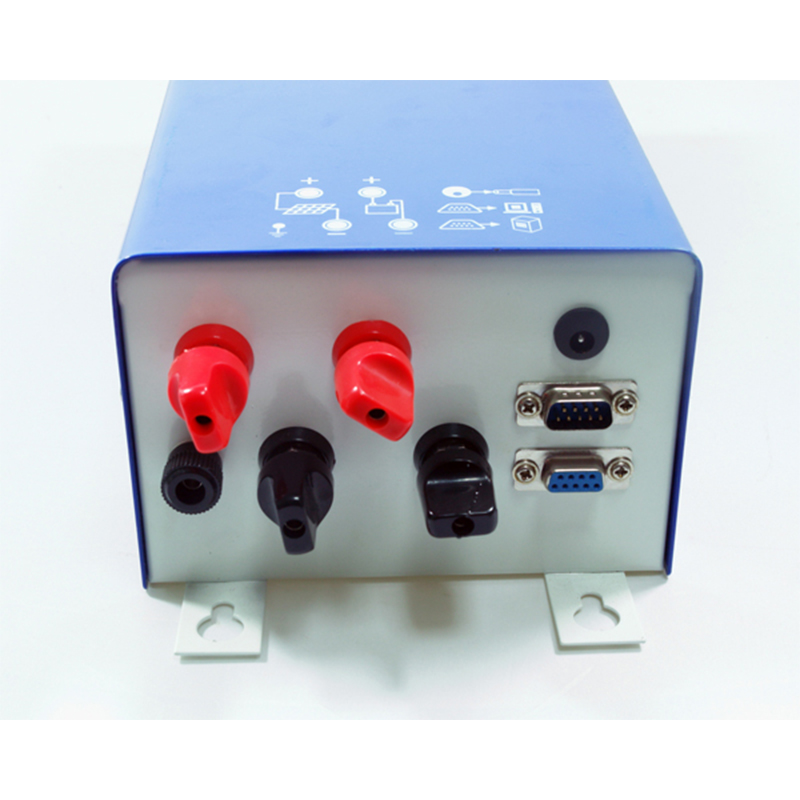

eMPPT30 series MPPT controller

    Details

        Model

      eMPPT3024Z

      eMPPT3048

    input

    solar panel input voltage scope

    ≤70V

    ≤130V

    maximum power point voltage tracking scope

    12V~70V12V

    48V~130V

    24V~70V24V

    solar panel input route

    1 route

    1 route

    output

    rated working voltage

    12V/24V auto switch

    48V

    maximum charging current

    30A

    30A

    no load loss

    ≤45mA

    ≤45mA

    charging mode

    Bulk Absorption Float

    float charging voltage

    27.6Vadjustable

    55.2Vadjustable

    temperature compensation for float charging voltage

    -4mV/cell/

    -4mV/cell/

    absorption charging voltage

    28.8Vadjustable

    57.6Vadjustable

    temperature scope

    -20+70

    -20+70

    others

    protection functions

    battery reverse connection function

    battery reverse discharging function

    solar panel reverse connection function

    solar panel input over voltage protection

    radiator overheat protection

    input over power deviated from maximum power point

    cooling way

    thermostat active cooling

    optional function

    RS485 or RS232remote controlling function

    working temperature scope

    -10+50

    working altitude

    ≤3000m

    working humidity scope

    090% no condensation

    volume

    380mm*150mm*100mm

    weight

    2.5 Kg

    2.6 Kg

    storage temperature scope

    -30+80
