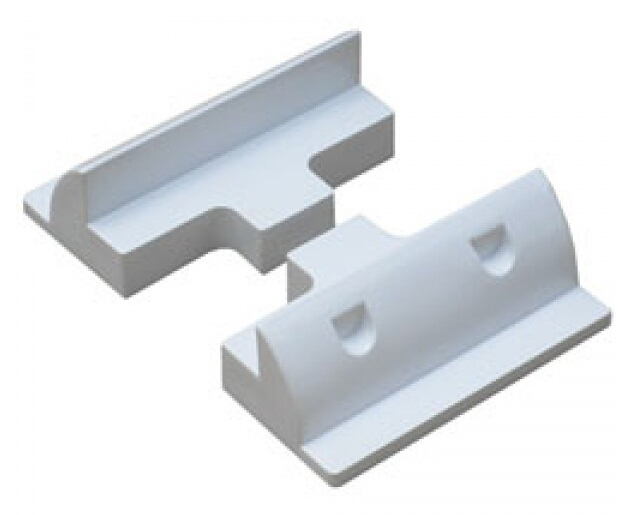

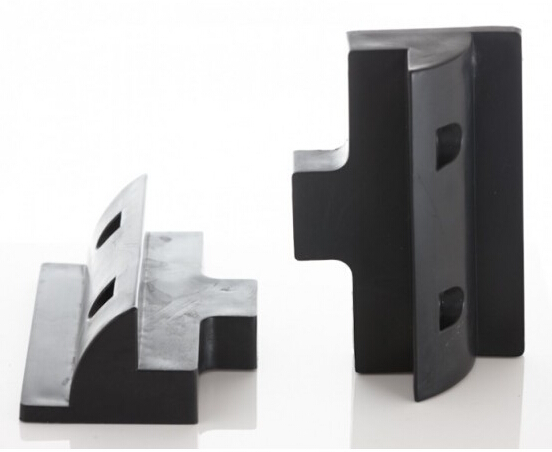

Solar Panel Adhesive Short Side Mount

    Box of 2 x Side Mounts.
    Mount your solar panels without needing to make holes in your roof.
    The solar panel side brackets can be used with any aluminium framed solar panel to provide a secure fixing for vehicles, caravans, boats, outbuildings etc. The mounts will support the solar panel at the optimum height above the surface to enable aeration from underneath, ensuring the solar panel functions as efficiently as possible.

    Solar panel mounts are an ideal way to fix solar panels on the roof or deck of motor homes and boats. The mounts can be safely bonded to the surface removing the need to drill holes. The mounts also act as a wind deflector and maintain the correct air gap between the solar panel and the roof top / deck.

    Dimensions: 180mm (l) x 65mm (h) . See picture for more details.
    ABS plastic
    Full instructions included
    Suitable for aluminium framed solar panels
    Larger panels may require additional corner mounting brackets Recommended bonding agent is Sikaflex 252

    Installation: The brackets are first screwed or bolted to the solar module using suitable stainless steel self-tapping screws. You will need to drill a clearance hole in the ABS brackets at the appropriate recessed ports. Once the brackets are attached to the panel the brackets can be bonded to the roof surface using Sikaflex 252. Full instructions available
