Micro Inverter

200W 250W 300W micro inverter for solar home system
    Details

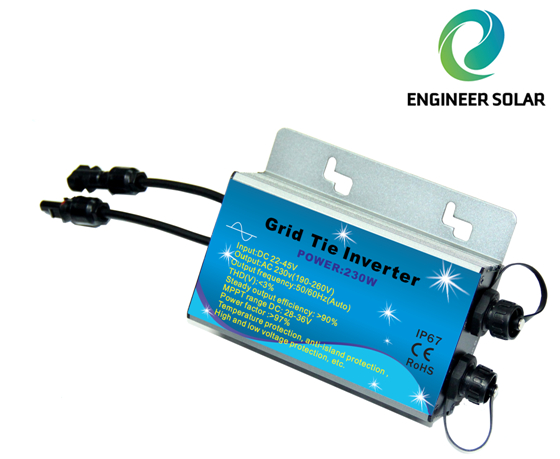

    >>>250W Micro-Inverter for solar home system with CE certification




    >>>Features Include:


    · IP67 for MC4, and IP65 design for inverter for outdoor use


    · Built-in communication module, supports monitoring at any time


    · Double AC output connectors for convenient wire connection


    · Creative MPPT tech makes efficiency higher than 99%




    >>>Data Sheet for Micro Inverter


     Rate Power

     200w

     230w

     250w

     300w

     Matched solar panel

     Vmp:35-39V voc:42-46V

     DC In Put Voltage Range

     24-48V

     MPPT

     28-36VDC

     Max. DC Input Power

     10A

     15A

     15A

     15A

     AC Output Voltage Range

     120VAC(90-140 VAC) or 230vac(190-260VAC)

     Frequency Range

     50/60HZ

     Power Factor

     >98.5

     THD

     <5%

     Phase Shift

     <1%

     Waterproof Grade

     IP65

     Peak Efficiency(110V)

     95%

     95%

     95%

     95%

     Stable Efficiency(110v)

     92%

     91%

     91%

     91%

     Cooling

    Nature Cooling

     Peak Efficiency(220V)

    95%

    95%

    95%

    95%

     Stable Efficiency(220v)

    93%

    92%

    92%

    92%

     Protestion

    Islanding;shor-circuit;converse connection;low voltage;over temperature;etc

     Work temperature

     -25°C-65°C

     EMC

     EN6100-6-3:2007 EN1000-6-1:2007

     Grid Disturbance

     EN 50178+EN62109-1+VDE0126-1-12

     Grid Detection

     DIN VDE 1026 UI1741

     Certificate

     CE





    >>>Package details


    · Packing accessory: 250W Micro Inverter, AC power cord, User Manual


    · Net Weight: 1.40KG


    · Packing: 6 pcs / carton


    · Packing carton size: 42.5*28*36 cm, 13KGS

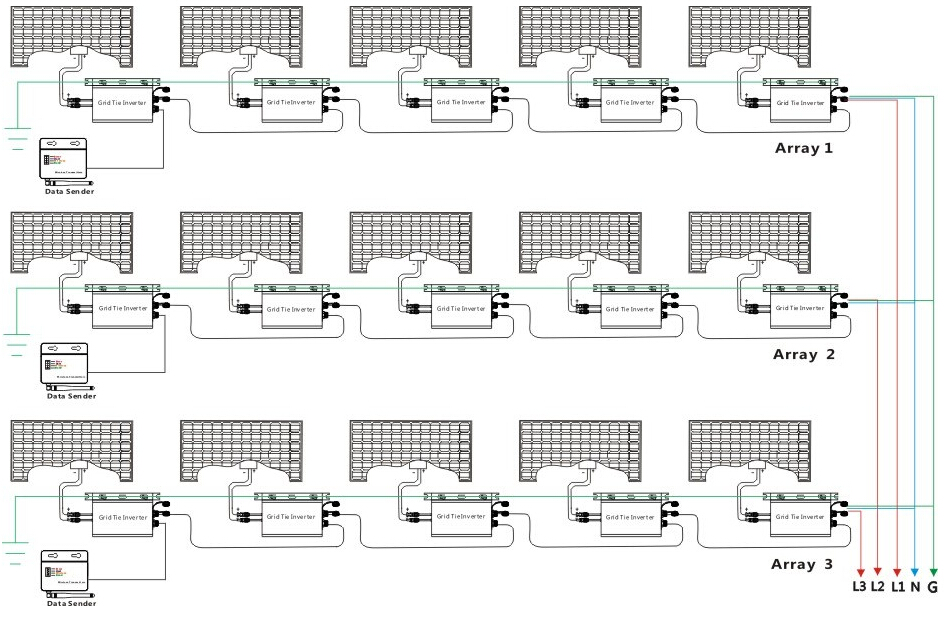

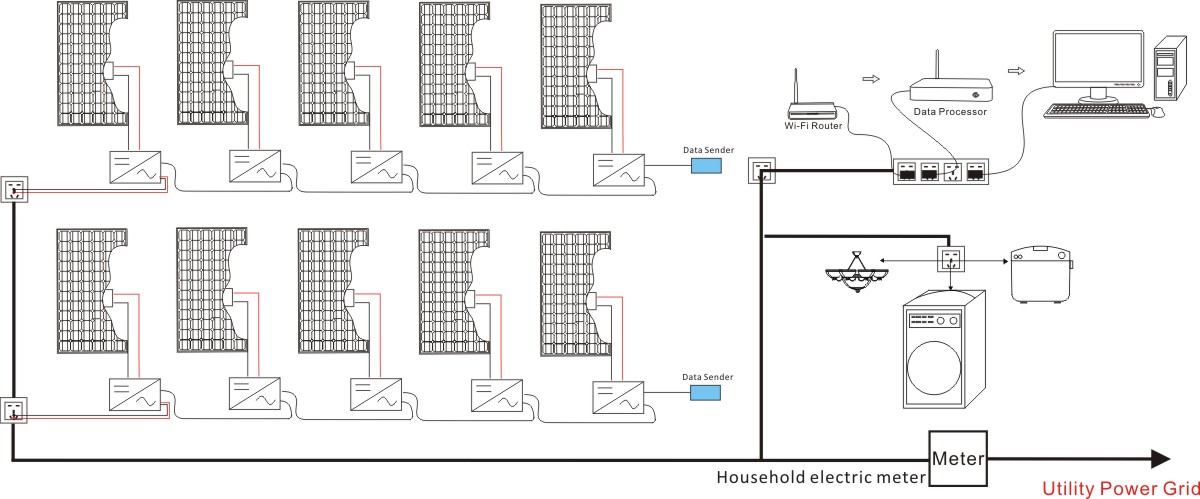

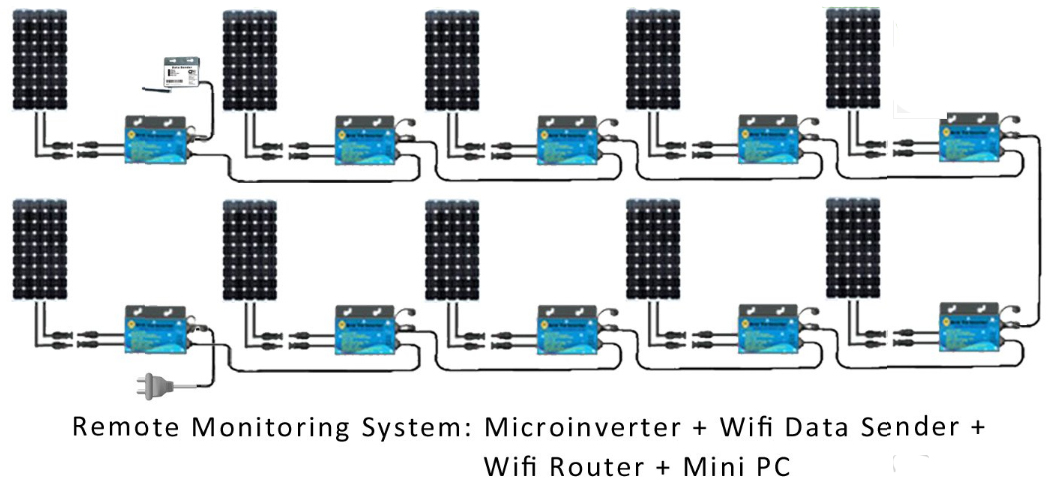

    · Micro inverter System picture as bellow.
