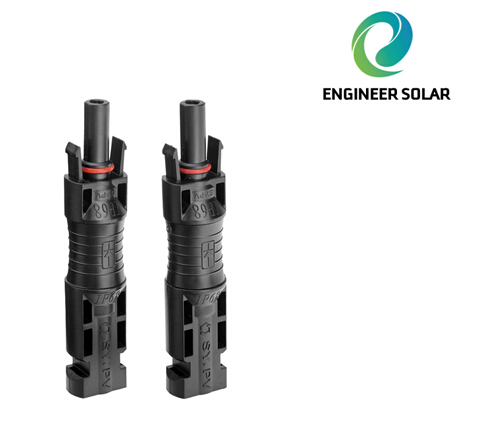

Solar Panel Diode Connector


      Product No.

      ES - MC4 Diode

      Rated Voltage

      TUV 1000V DC / UL 600V DC

      Rating Current

      3A 8A(Diode)

      Pin Dimension


      Proof Voltage

      TUV 6000V AC(1Min) / UL 2200V DC(1Min)

      Pollution Degree


      Protection Class


      Contact Material

      Copper,Tin Plated

      Contact Resistance

      ≤ 5mΩ

      Connector Material


      Degree Of Protection IP

      IP67(IEC 60529)

      Withdrawal Force

      ≥ 50N

      Inserition Force

      ≤ 50N

      Temperature Range

      40 +85

      Flame Class

      UL94V - 0

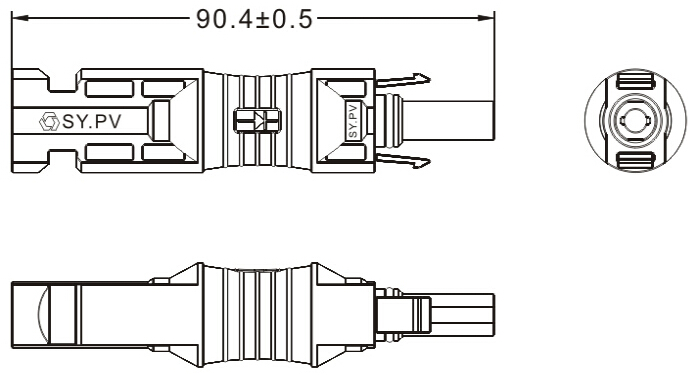

    MC4 Diode Connector Drawing Details
