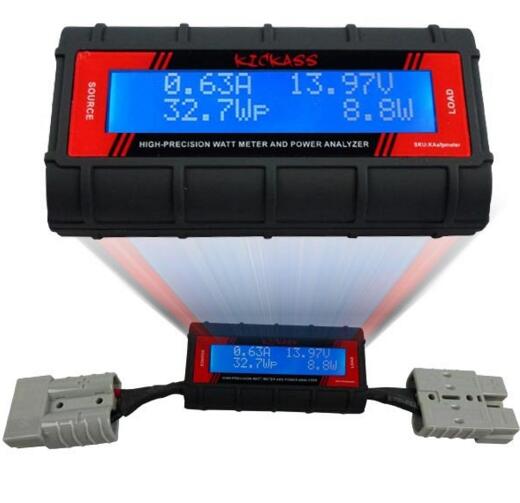

Watt Meter with Anderson Plug


    Watt & Power Meter for use with Solar Panels

    This simple yet extremely handy device gives a digital display of exactly how much charge your panels are actually producing. It has been difficult to measure this without special equipment or expert knowledge - until now!

    The device is easily installed and provides you with all the key ratings of your solar panels in realtime.
    This is a perfect companion to our range of KickAss Portable Solar Panels but can be used with any type of solar panel aswell.

    Installation is easy - the watt meter has two anderson plugs, and is installed in-line between your solar regulator and batteries/load. Simply connect the solar panel regulator's output to the "source" side of the watt meter, and connect the battery/load cabling to the "load" side. Once there is power flowing through, the device will initialise and show you a full range of ratings including:

    • Current (Amps/A) at the present moment
    • Voltage (Volts/V) at the present moment
    • Power (Watts/W) at the present moment
    • Total Amps (Amp hours/Ah) since device initialised
    • Total Power (Watt hours/Wh) since device initialised
    • Highest Voltage Maximum (Vm) since device initialised
    • Highest Power Peak (Watt Peak/Wp) since device initialised
    • Highest Current Peak (Amp Peak/Ap) since device initialised

    The Solar Watt Meter only requires a a tiny 7mA draw to operate, so there will be no significant reduction in your power production during usage.

    Operating Voltage 0-60V DC
    Current 0-100A Intermittent
    50A Continuous
    Temperature Range 0-50°C ambient air temp.
    Measurement Update Period 400mS
    Data Queue Sequence Time 2sec
    In Circuit Resistance 0.001 Ohms
    Operation Current 7mA
    Auxiliary Power Voltage 4-60V DC
    Dimensions 84 x 50 x 20mm (LxWxD)
    Weight 132g
    Display 16 character x 2 row STN LCD


    Measurement Parameters:


    Parameter Range Resolution
    Voltage 0-60V DC 0.01V
    Current 0-100A Peak 0.01A
    Power 0-6554W 0.1W
    Charge 0-65Ah 0.001Ah
    Energy 0-6554Wh 0.1Wh
