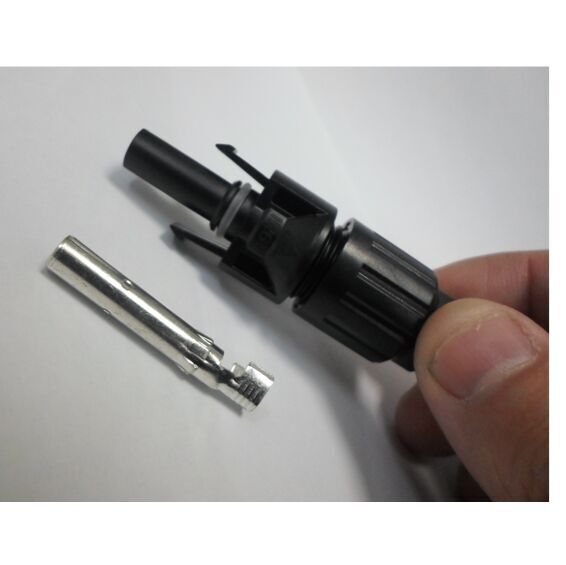

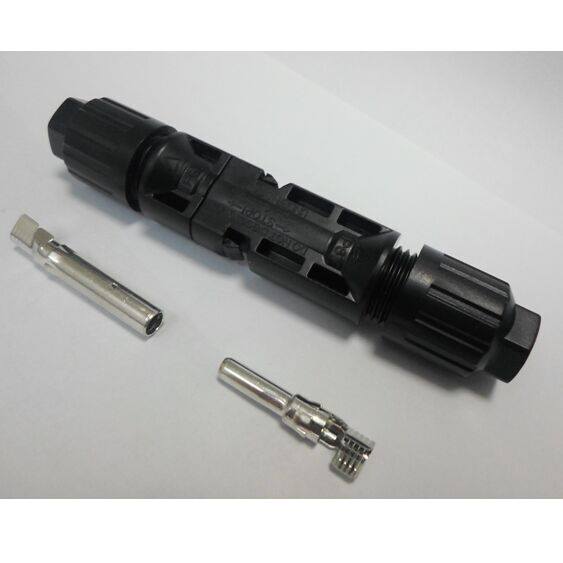

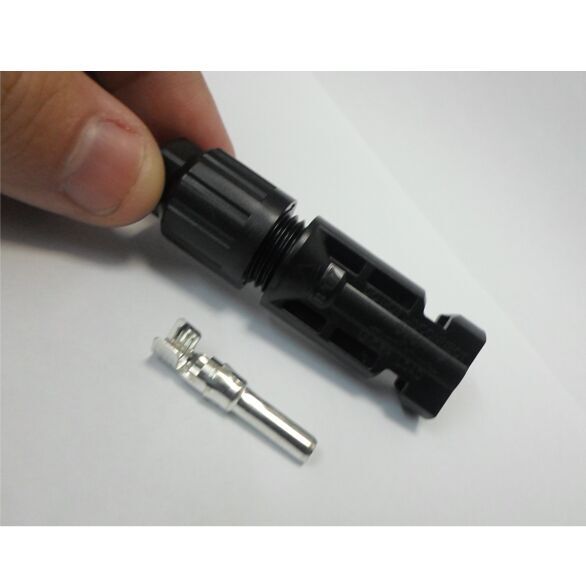

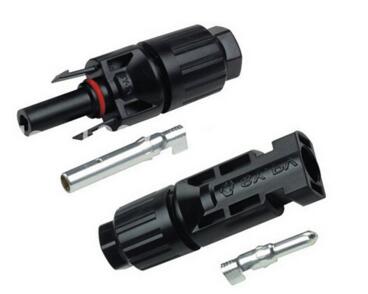

Sunyo SY-C4K Solar Connector

    Details



    · Rated Voltage:  TUV 1500V DC / UL 600V DC


    · Rating Current:  20-30A


    · Cable Size:  2.5-4.0-6.0, 10-12-14AWG


    · Pin OD:  4.0mm


    · Proof VoltageTUV 1500V AC, 1 min


    · Pollution Degree:  2


    · Protection Class: Class II


    · Contact Material: Copper. tin, plated


    · Withdrawal Force:  ≥50N


    · Insertion Force:  ≤50N


    · Temperature Range:  -40 to 85℃


    · Flame class:  UL94-V0




    · Contact Resistance below 0.20mΩ


    · Handles current up to 30A




     Safety


    · TUV and UL certification


    · Slight heat rising at rated current


    · IP 67 water proof


    · UL94-V0 flame proof


    · Strong pulling force capability




    Warrantly


    · 20 years
